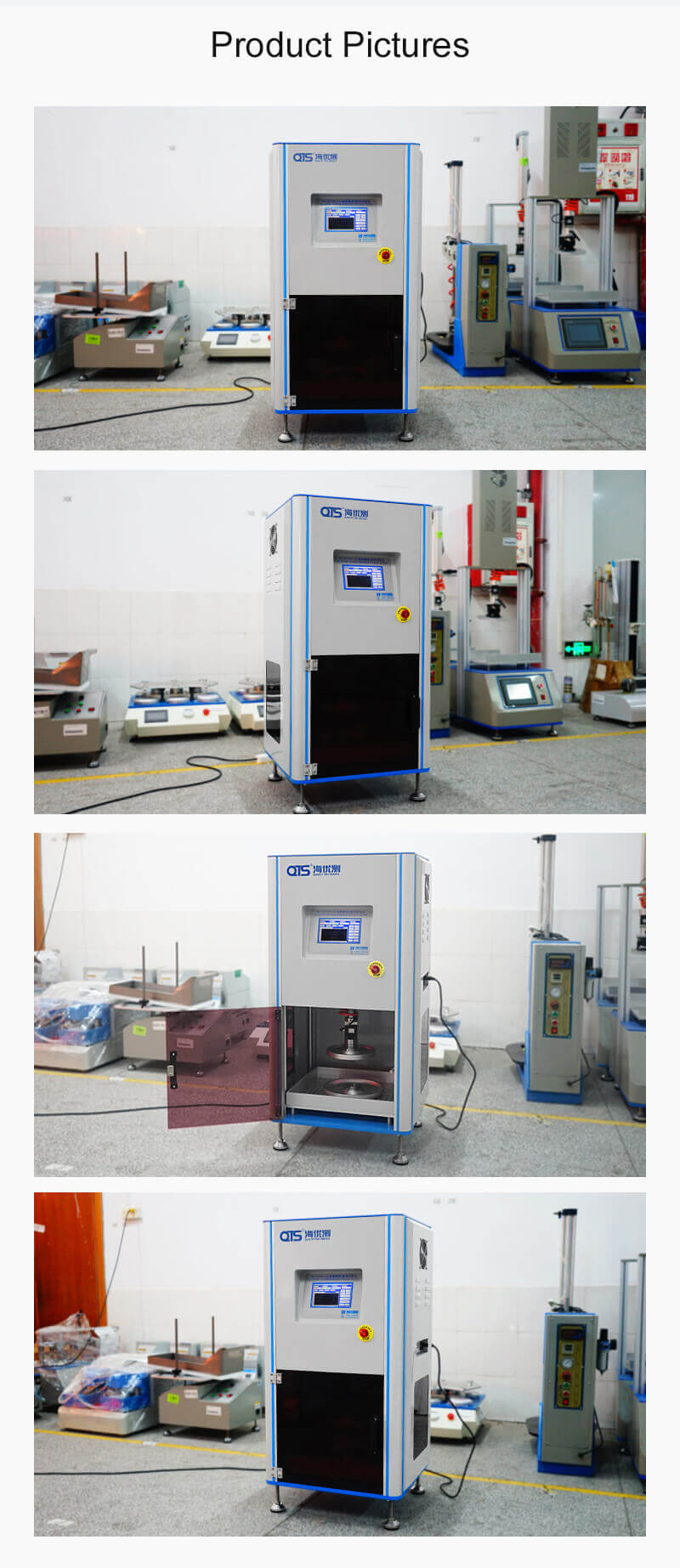

Sponge Foam Compression Fatigue Testing Machine
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-F750-1A |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
- Categories
Product Detail
Product introduction:
Sponge foam compression testing machine is mainly used for fatigue reciprocating foam polymeric material compression test, determination of resilience formation rate. Then we can know the dynamic fatigue properties of materials.
APPLICATIONS& TEST PURPOSE:
Foam compression tester is used to test material compressed indentation hardness, such as sponge, foam and other porous elastic. Put specimen under pressure plate, the plate compress the specimen with a specify speed until the national standard require concavity, the load cell feedback the pressure to computer, it processing and display, then measure the indentation hardness of sponge, foam and other materials.

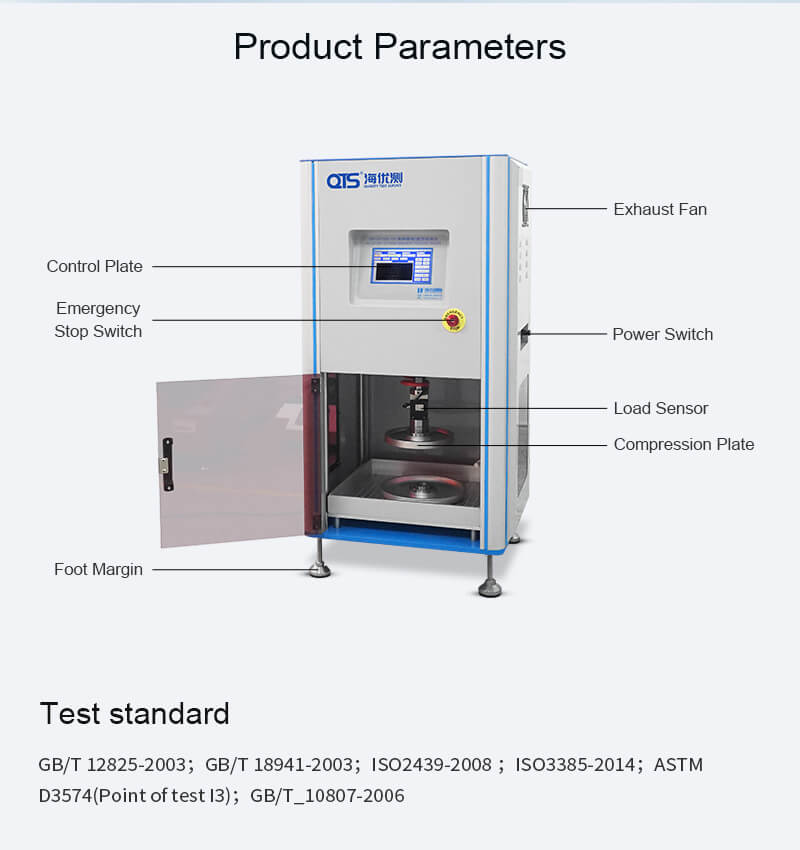

The main technical parameters:
| head speed: 100MM/MIN; | indentation hardness measurement range: 0-2000.0 N |
| force minimum resolution: 0.25 N | the measurement accuracy: <1% |
| indentation deformation precision < ± 0.25% | loading capacity values: 0-2000N adjustable |
| the table size: length 600mm width *600mm* high 300mm (support plate size is larger than the table size) | head size: 0.0314 square meters (the effective stroke head from a to 200mm) |
| stop automatically after the test, print the test report. | host size: 750*750*900mm |
| the power supply specification: 220V, 500W | ambient temperature: room temperature |
| environmental humidity: ≤ 80% |

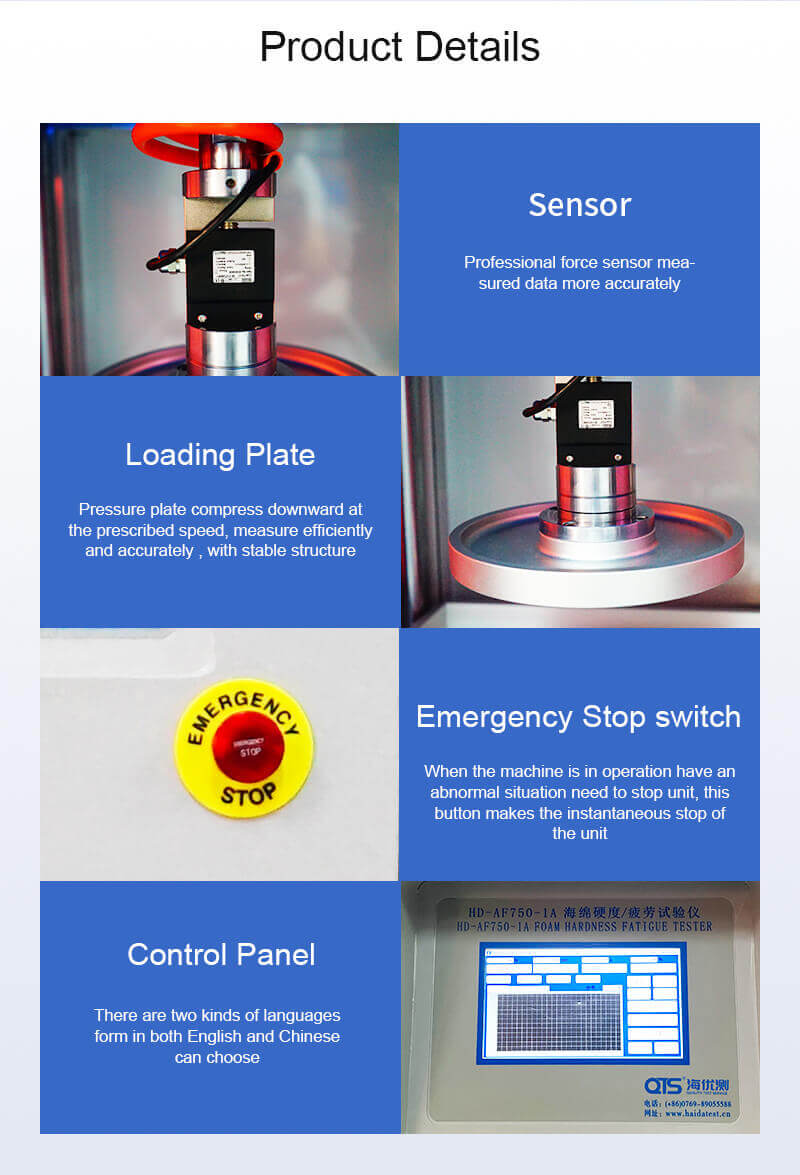

Sponge indentation hardness and fatigue tester main parts:
PLC Huichuan
Touch screen KunLun on state
Electric Taiwan Auban and Japan Panasonic servo motor
Electrical accessories OMRON
The sensor made in China
Reducer Taiwan brand
