10T Universal Test Machine
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-B612-S |
| Certification | CE,ISO |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
Product Overview
This type universal testing machine have a strong power (10T max force and 2T, 5T are optional). 10T test capacity universal test machine is particularly design to use for metal,steel,plastic pipe, etc with specialized sensors and fixtures. The data will be displayed on the computer so that the force values change during the test.
1. Test Items
Elongation,tensile, peel, tear, heat seal, adhesive, bend and open force.
2. Application Standard
Including but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM…etc
3. Application Industry
Steel, metal, composite, plastic pipe and metal materials,etc
Specifications
| Item | Specification |
| Max. Force | 10T (100KN) |
| Load cell | Imported brand load cell |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Stoke | 1100mm including fixture |
| Load cell Resolution | 1/250,000 |
| Load Precision | within ±0.5% |
| Test speed | 0.01~300mm/min (adjustable) |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Structure
Features of ASTM 100KN Electronic Plastic Textile Tensile Strength Tester

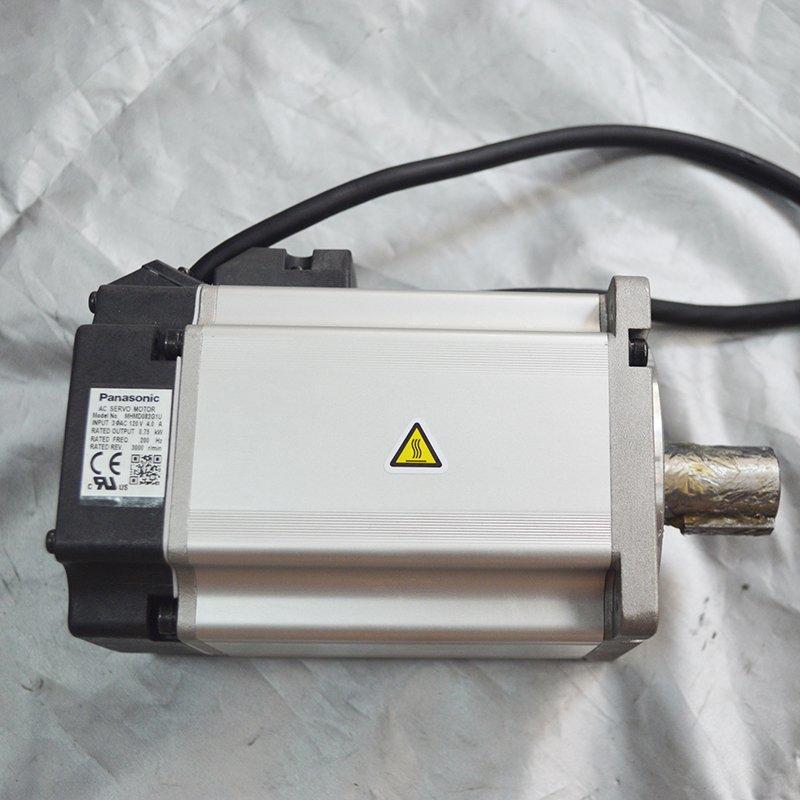

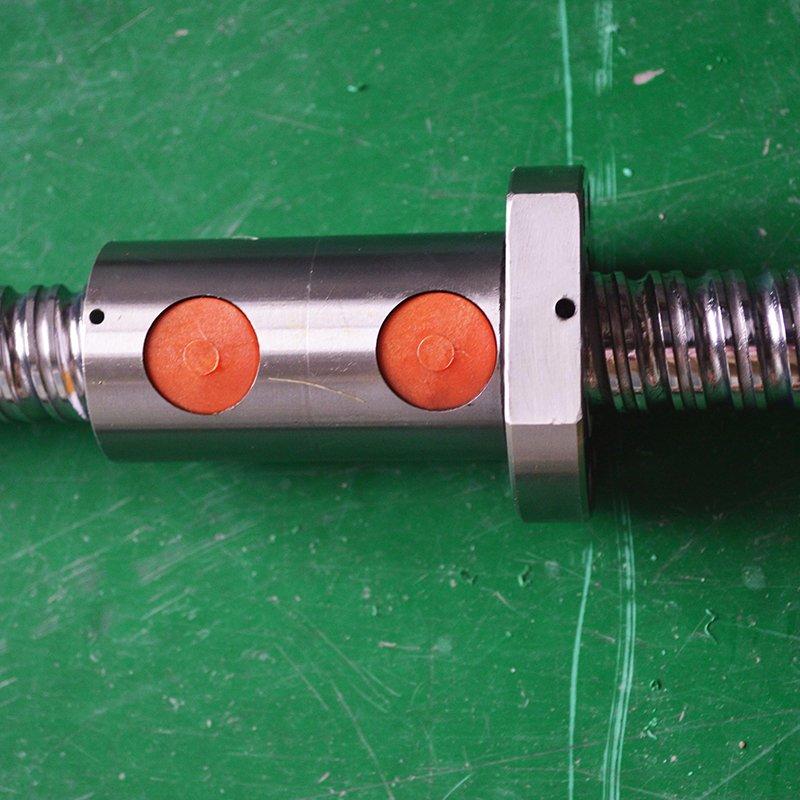

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).
2. Displacement resolution: 0.001mm.
3. User can set parameters of product material such as length, width, thickness, radius, area and so on.
4. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation.
5. Data transmission: RS232.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. Graph scale automatic optimization can make graph to display with best measurement and can implem- ent graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress – strain.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.
ELECTRICAL SYSTEM
This machine is safe and reliable,with overload protection,overheating protection and leakage protection.
10T Universal Test Machine Benefit
TM 2101 intelligent automatic detection of the operating system, (can adapt to all current PC).
High-tech, low noise
Humanized industrial design, easy to place and transport
The world famous brand core precision components
Security protection system
Valid test trip length (modifiable)
CLAMPS
It can be equipped with various fixtures to meet the tensile,compression,bending,shearing,peeling and other tests of different materials.
