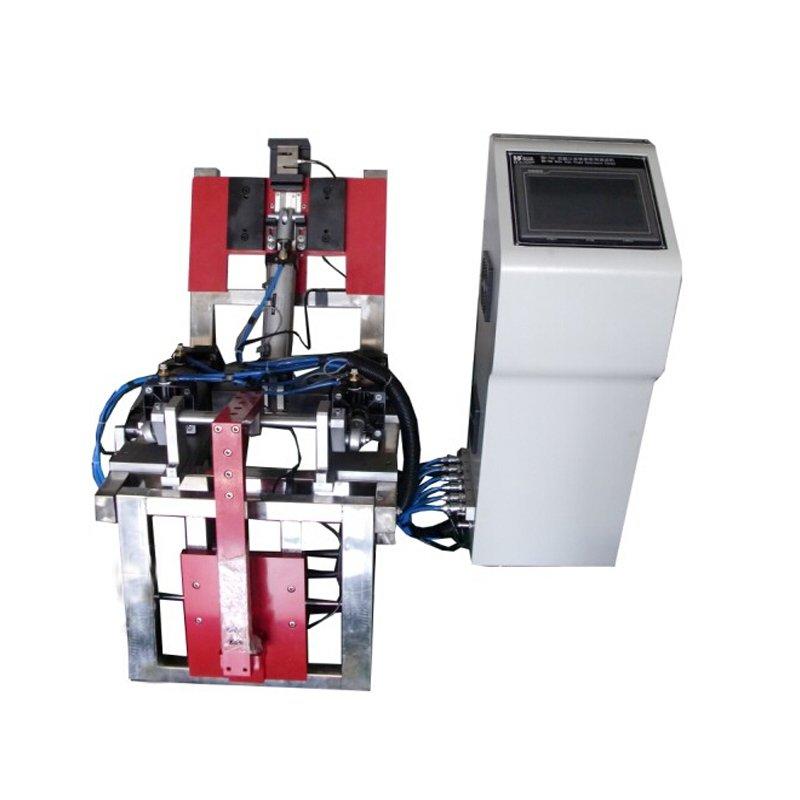

Liquid Crystal Display Fixed Safa Iron Frame Fatigue Tester

Minimum

1 SET 15 days after order.

Delivery

15 days after order.

Model

HD-F765

Country

China

BrandName

HD

Package

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Payment

L/C, D/P, T/T

Price

FOB, CIF


Product Introduction:
A set of stainless steel with joints (the joints are on the backrest and knee joints) is installed and fixed on the functional iron frame. The stainless steel bracket is equipped with pneumatic devices to simulate various actions.



Main technical parameters:

control mode 7-inch touch screen + huichuan PLC
electrical connection single-phase AC220V/50HZ
air pressure requirements 6-8 Bar
standard accessories 1. Foreign 113.5kg (250 LBS), seat 67%~70%(76.5kg), backrest 20%~25% (25kg),
The leg 10% ~ 12% (12 kg)
standard accessories 2. Domestic 70kg (154 LBS), seats 67%~70% (47kg), backrest 20%~25% (15.5kg), legs 10%~12% (7.5kg)
size overall 2000x1000x1200 (L x W x H)
weight 150KG



Function:
1.Rotation actuator working, turn on the leg mechanism
2.Cylinder pushback, depress backrest while leg risen
3.Cylinder return, pull the backrest back to initial position.
4.Leg cylinder action, simulate leg movement to make leg return to initial position.
5.Repeat to test iron frame durability.
MAIN TECHNICAL PARAMETERS
Max load: 113.5kg(250lb)
1.Seat 67%~70%(76.5kg)
2.Backrest20%~25% (25kg)
3.Leg 10%~12% (12kg)



Main configuration:
1) PLC inovance
2) touch screen kunlun tunneling (7 inches)
3) force sensor, tecsis, Germany
4) program independent research and development of haida
5) electrical accessories omron
6) the new pneumatic cylinder of Taiwan
