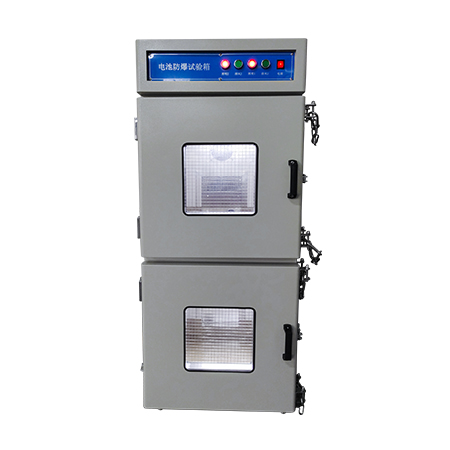

Battery Explosion-proof Test Chamber
| MODEL | HD-H203 |
|---|---|
| CERTIFICATION | CE,,ISO |
| BRANDNAME | Haida |
| Application | The Battery Explosion-proof Test Chamber is mainly used for overcharging and over-discharging of the battery. During the charge and discharge test, the battery is placed in an explosion-proof box and connected to an external charge and discharge tester to protect the operator and the instrument. |
- Categories
Product Detail
Description
Battery Explosion-Proof Test Chamber is mainly used for over-charge and over-discharge test of the battery. During the charge and discharge test, the battery is placed in an explosion-proof chamber, and the external charge and discharge test machine is connected to protect the operator and the instrument.
Features
1. Observation window
2. Silicone compression strip and explosion-proof chain handle, safe to operate
3. Inner material: stainless steel;outer material: cold rolled sheet and painted
4. Separate exhaust and lighting system
5. 4 casters for easy movement
Standards
1. UN38.3(2012) “Recommendations on the Transport of Dangerous Goods-Manual of Tests and Standards” Part III
2. IEC62133-2012 “Safety requirements for batteries and battery packs containing alkaline or non-acid electrolytes”
3. GB/T 31485-2015 “Safety requirements and test methods for power batteries for electric vehicles”
4. GB31241-2014 “Safety requirements for lithium-ion batteries and battery packs for portable electronic products”
Specifications
| Model | HD-H203 |
| 1. Inner box size | 500x500x500mm (width x depth x height); |
| 2. Dimensions | 680x750x1475mm (width x depth x height, including door lock); |
| 3. External material | cold-rolled steel plate with paint treatment, thickness 1.5mm; |
| 4. Internal material | SUS#304 thickness 1.2mm; |
| 5. Number of cabinets | 2; |
| 6. Box door | a single door opens to the left, and an explosion-proof chain is installed on the side of the box door; |
| 7. Teflon tape is attached to the inside of the box, which is effective in insulation and flame retardant, easy to clean; | |
| 8. There are test holes on the left side of each layer of the box, which is convenient for the test connection line to pass through; | |
| 9. Each test box has a lighting and smoke exhaust interface, and there is an interval design between each layer to avoid mutual influence on the test; | |
| 10. Control mode | button control ; |
| 11. Pressure relief door size | 200x200mm; Located at the back of the box, when the sample explodes, the pressure relief port will pop open to relieve the pressure; |
| 12. Smoke exhaust pipe | diameter φ100mm, located at the back of the box; |
| 13. Observation window | Two-layer tempered glass with a size of 250x250mm, equipped with stainless steel mesh; |
| 14. Equipment movement | There are four universal casters at the bottom of the equipment, which can move freely; |
| 15. Lighting device | It is convenient to observe the state of the tested sample; |
| 16. Power supply | 1∮; AC220V; 50-60HZ |
