Chair Drop Impact Tester
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-F736-A |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
- Categories
Product Detail
Equipment Description:

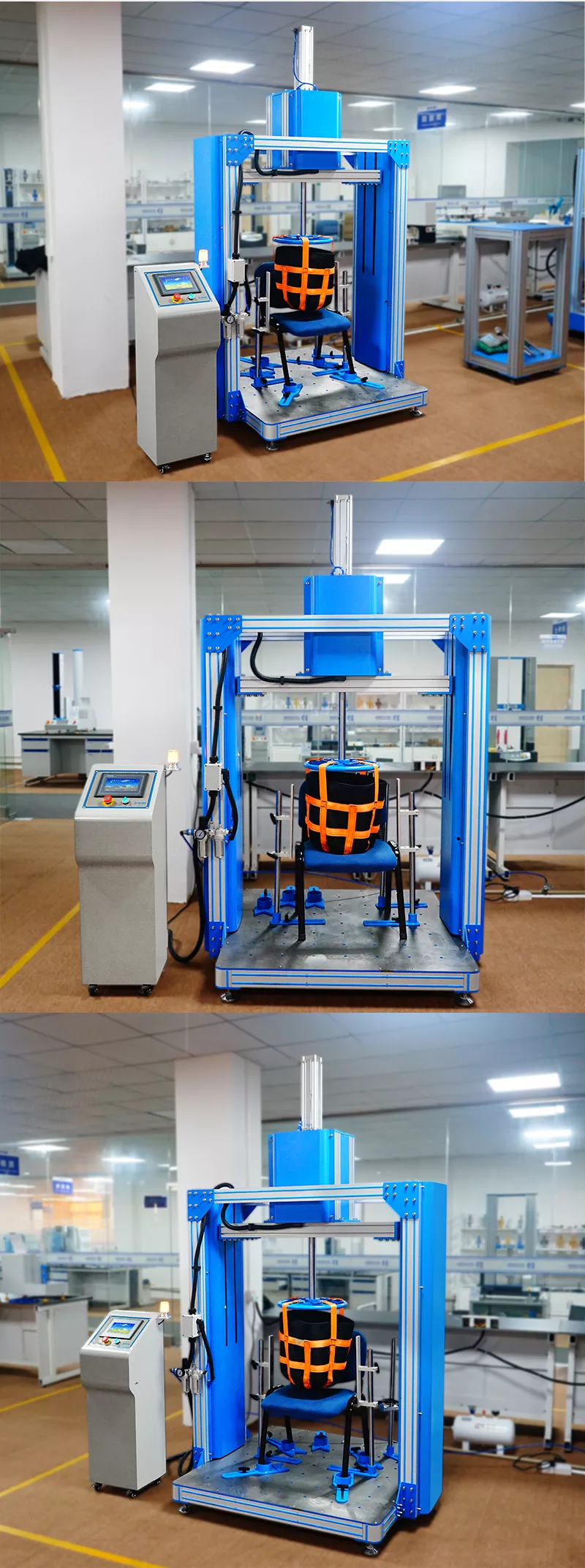

Test rig for chair drop durability is used to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat. It can also to evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.

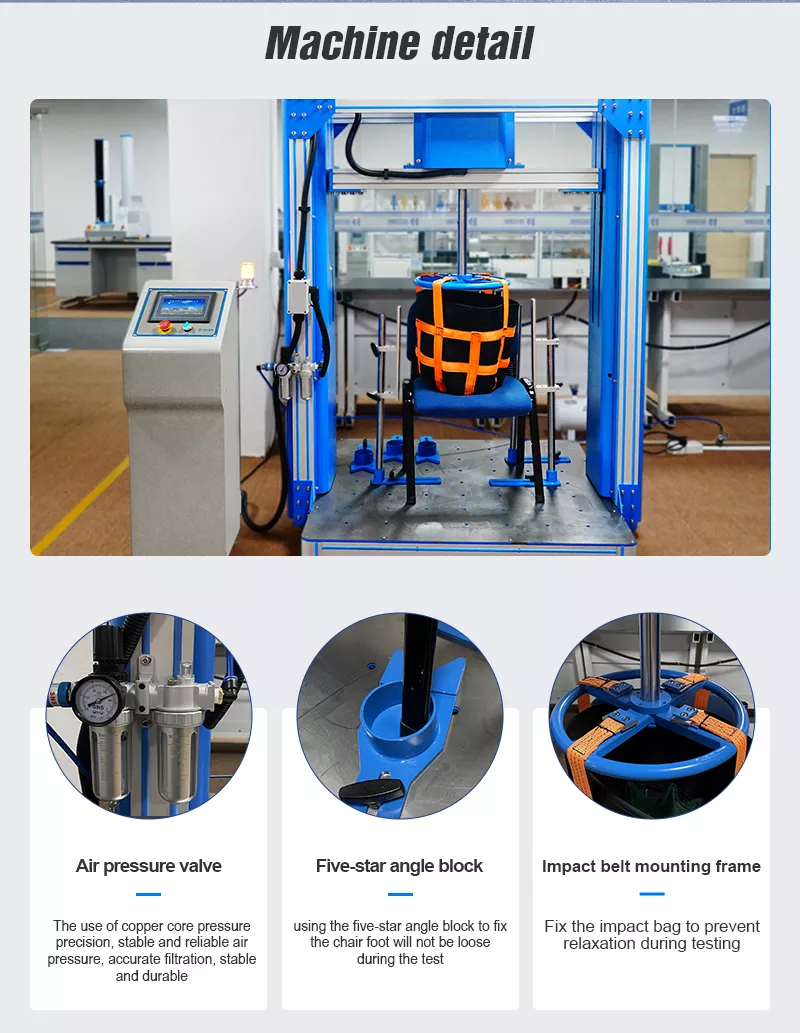

STANDARD FEATURES
| Adjustable Drop Height | 10mm to 180mm |
| Weight Sensor | 200Kg |
| Largest chair dimensions width | 1000mm |
| Test speed | 0～30 times/min |
| Times setting | 0 ~ 999,999 |
| Control mode | PLC and LCD touch screen |
| Air source | 6kg/cm2 |
| Accessories | total test bag weight 136kg
(can be divided to 136kg 102kg, 57kg) |
APPLICATION STANDARDS:BIFMA X5.1 2017
Reference Doc: BIFMA X5.1 2017 clause 7 Drop Test Dynamic
Test Procedures:
1. Functional Load Test
A test bag weighing 102 kg (225 lb.) shall be raised 152 mm (6 in.) above the
uncompressed seat and released one time.
Remove the bag.
For chairs with seat height adjustment features, set height to its lowest position and
repeat a) and b).
1. Proof Load Test
(Similar with Functional Load Test, but the force is 136 kg(300 lb).)

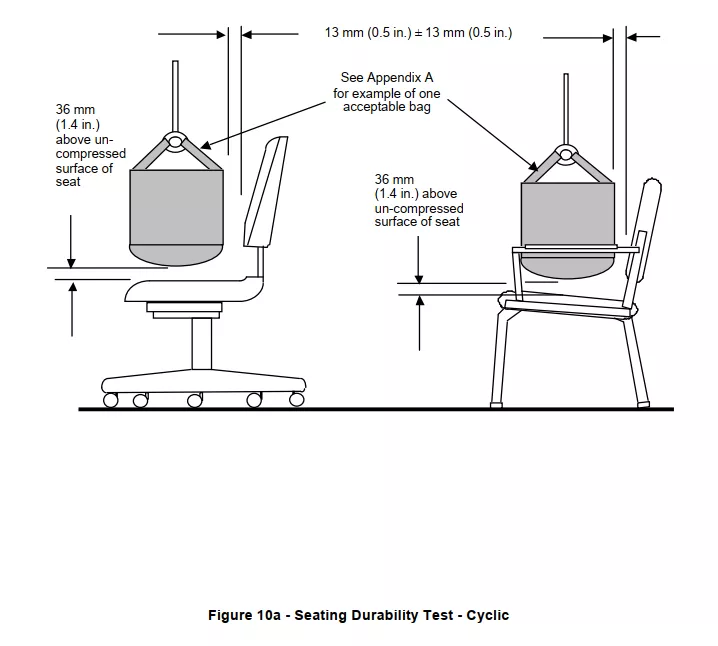

Reference Doc: BIFMA X5.1 2017 clause 10 Seating durability test-cycles ( 10.3 Impact test)
Test Procedures:
A test bag weighing 57 kg (125 lb.) shall be raised 36 mm (1.4 in.) above the uncompressed seat and released for 100,000 at 10-30 cycles/min.
