Packaging Clamping Force Testing Machine
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-534 |
| Certification | ISO |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
- Categories
Product Detail

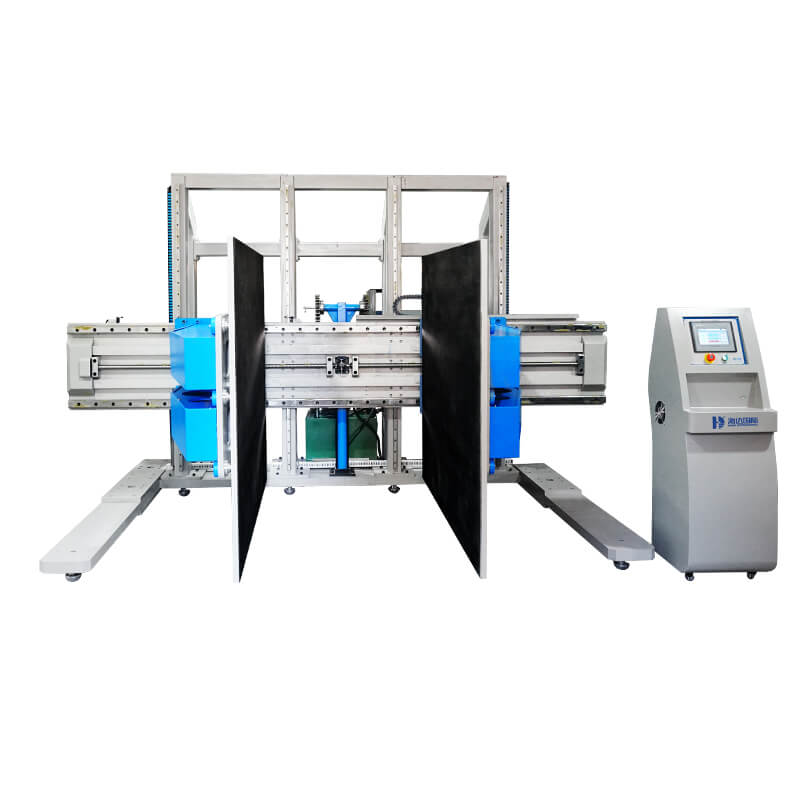

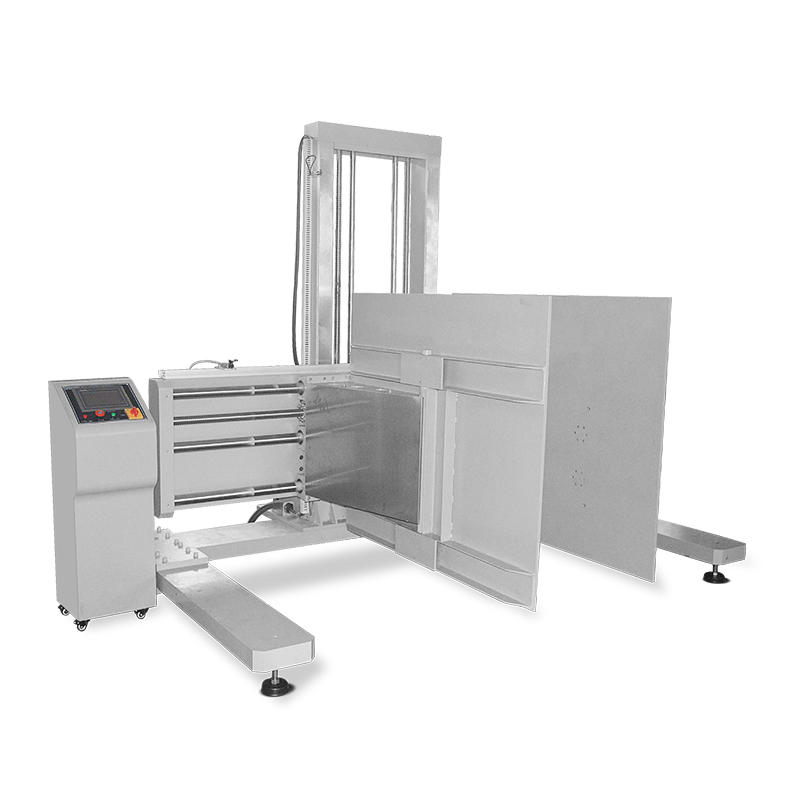

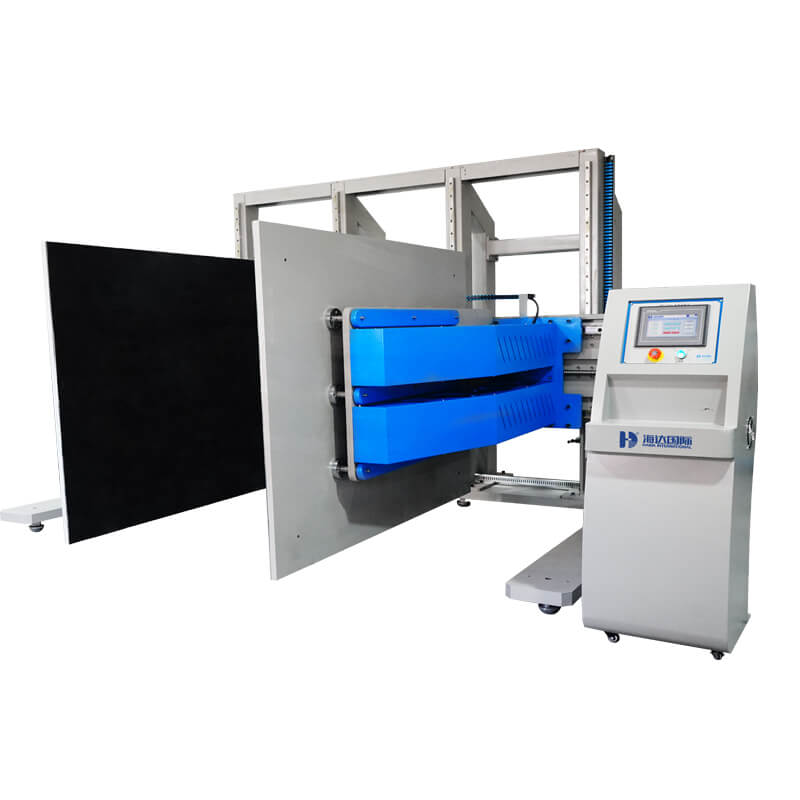

Clamp test Machine simulates the process the schnabel car discharge the package, during this process, the clamping force of the both boards will affect the package and cargo. And this test is to evaluate the resistance property of the package toward this clamping force.
The Parameters:
| Specimen shape | Parallelepiped transport package |
| Max. Specimen weight | 500kg |
| Clamping pressure force | According to the transport diagram on the test sample, the operator can add 400~3000Lb (adjustable) pressure force on the corresponding surface |
| Clamping board size | H*D 48*48inch |
| Clamping board adjustable height | 0~500mm |
| Elevation speed | 10~300mm/min optional |
| Clamping board expansion width | 200~2000mm |
| Baseboard dimension | W*D 1500*1500mm |
| Clamping board requirement | Make sure the two clamping board are flat, parallel and non-deform under the work condition(2000Pound) and clamp board and land are vertical. Clamping board thickness no less than 25mm. |
| Corrector of force | Force value display used to correct clamping force |
| Force precision | National standard 1.6 level |
| Operation | Manual operating rod simulates fork truck actual operating actions such as clamping control, opening, lifting up, lifting down or automatic switching mode operation (clamping board thickness no less than 25mm) |
| Device width | Less than 2.5m |
