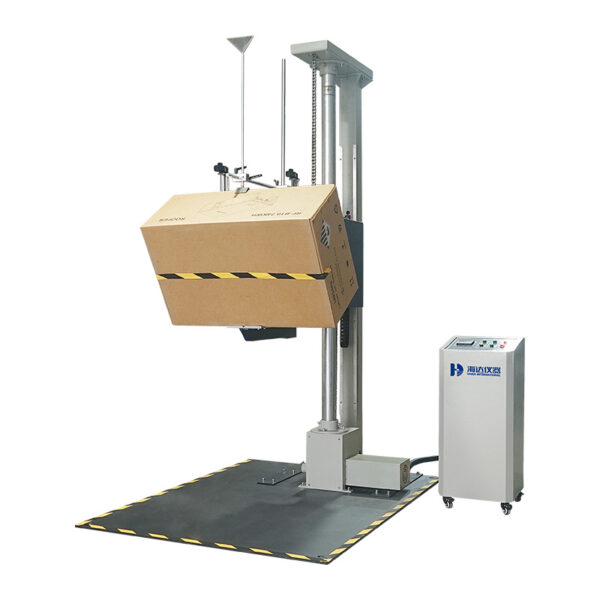

Single wing drop test machine
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-A520-A |
| Certification | CE,,ISO |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
- Categories
Product Detail
Drop Weight Impact Testing Machine During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And the machine simulates the drop/ fall of a finished product to evaluate the damage. Standard test of packaged freights (surfaces,corners, and edges), etc. can be performed efficiently with a high accuracy.
Specification:
| Drop height | 400-1500mm (can be customized) |
| Display method | Digital display |
| Max. weight of sample | 60kg (can be customized) |
| Max. size of sample | (L*W*H) 800*800*800mm |
| Drop panel area | 150*180*8mm (material is Solid steel plate) |
| Control box dimension | (L*W*H) 350*350*1100mm |
| Deviation of drop horizon | Less than 1° |
| Machine size | (L*W*H)1400*1200*2200mm |
FEATURES:
1. Outside material: advanced paint coat.
2. It adopts double wings to fix the products well when testing.
3. Power system: drive device (imported motor + speed reducer +Axel+ upper and lower limitation + spring+electromagnet)+dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder +hydraulic pressure buffering device)
4. Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control.
5. Safety device: upper and lower limitation device, automatic off-power device if electricity leakage occurs.
