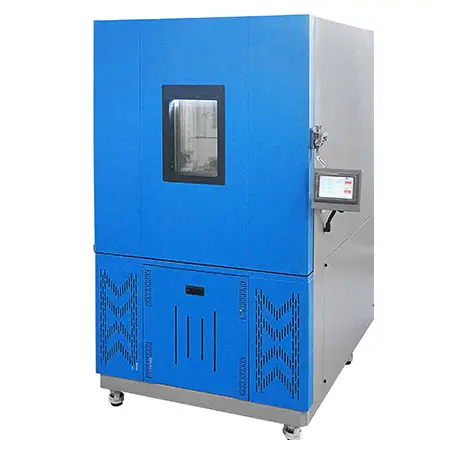

Rapid-rate Thermal Cycle Chamber

Minimum

1 SET

Delivery

15 days after order

Model

HD-E708

Country

China

BrandName

HD

Package

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Payment

L/C, D/P, T/T

Price

FOB, CIF

Rapid-rate Thermal Cycle Chamber Features

Rapid-rate Thermal Cycle Chamber Equipment Perfect appearance and easy to operate.
Japan LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.
Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.
Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…
Control interface will display alarm reason and provide check methods, machine has emergency stop button.
Cold and hot shock temperature recover within 5 minutes, which complies with MTL, IEC, JIS, GJB and other international standards.
With RS-232C communication port for connecting PC to control, record and save test report.

Specifications

Model HD-E708-100 HD-E708-150 HD-E708-225
Internal dimension 350*350*400mm 500*450*450mm 650*670*450mm
External dimension 1230*1270*1830mm 1380*1370*1980mm 1530*1590*1980mm
Externaldimension(Painttype 600*1080*1380mm 700*1080*1480mm 700*1180*1630mm
Temperature(℃) -20/-40/-70 -20/-40/-70 -20/-40/-70
Maximum Current(A) 22,22,28 22,22,28 18,18,23
Voltage(V) Single-phase220V Single-phase220V Three-phase380V
Temp,range 0℃;-20℃;-40℃;-70℃~+150℃
Test Method Pneumatic Operated Door Switch(two/three-zone)
Temp.Display Accuracy 0.01℃
Temp.uniformity ≤±2.0℃
Temp.deviation ±0.5℃~±0.2℃(without load)
Heating speed 1℃/min~20℃/min,can be customized
Cooling Speed 1℃/min~20℃/min,can be customized
Humid.range 20%~98%RH
Humid.resolution 0.1% R.H.
Humid.uniformity ±3%RH(without load)
Internal chamber material Stainless steel 304
External chamber material Stainless steel/paint spray



Structure

rapid-rate-test-chamber

Product Introduction

Rapid-rate Thermal Cycle Chamber can evaluata the failure mechanical properties ofproduct; normally the temperature ramp rate is less than 20℃/min,which can achieve thereal application environment of testing sample by the fastest ramp rate.
The chamber is applied to the screening test and failure mode evaluation ofphotoelectric components,interconnection circuits, component units and electronicdevices.
Test Standard:
GB/T5170.2-2008 Temperature Test Equipment
GB/T2423.1-2008(IEC60068-2-1:2007)Tests:Test A-Cold
GB/T2423.2-2008(IEC60068-2-2:2007)Tests:Test B-Dry Heat
IEC 60068-2-14 2009 Tests:Test N-Change Of Temperature

PLC Controller

The controller adopts LCD touch screen,and it is with automatic,intelligent and humanized design.
2022101809281
20221018092908

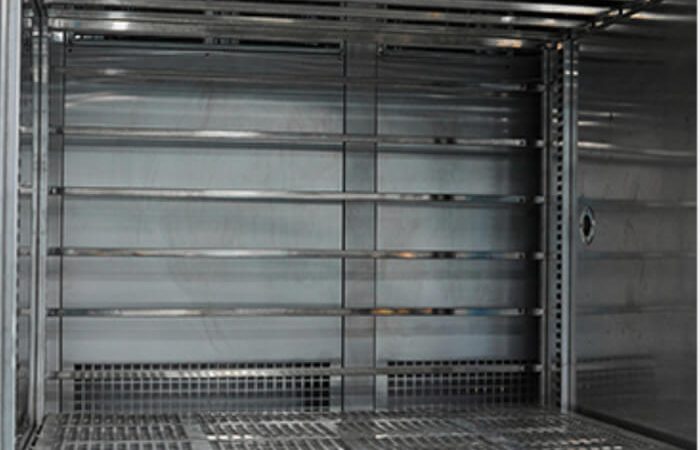

Material of lnner Chamber

SUS304 mirror stainless steel plate,cor-rosion-resistant,easy to clean,beautiful and generous.

Water Tank

The chamber was installed with refilling device,water purification device,circulat-ing water recovery device and water shortage alarm device.
20221018092835
20221018092919

Observation Window

The door is equipped with electric heating(automatic adjustment) design for an-ti-frosting and anti-condensation.There is a set of LED lamp in the middleof double-layers viewing window.
