Product Center

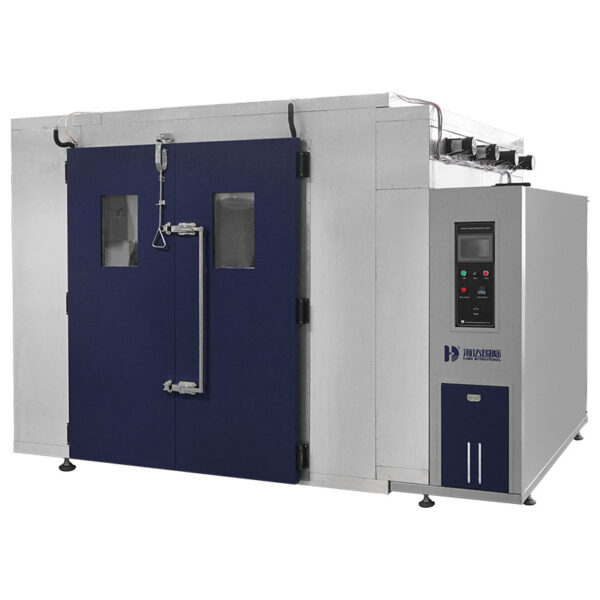

Solar Panel Test Chambers








-50c To +100c


Haida offers solar and photovoltaic test chamber solutions that are designed to test the effects of solar and UV properties on various products and components.

Product Description

Haida offers solar panel test chamber solutions that are designed to test the effects of solar and UV properties on various products and components. These test chambers are designed to meet common solar panel test specifications for IEC 61713, 61215 and 61464 along with other UL and ASTM tests for temperature cycling test, damp heat test and humidity freeze tests.
Thermal Cycle Test: Thermal cycle test is performed according to IEC 61215:2005 standard to test ability of PV module to withstand effects of temperature stress. This test is performed between temperature 85°C and -40°C with fast changing rate. Number of cycles is run 50 or 200 times.
Humidity Freeze Test: Humidity freeze test is performed to determine ability of PV modules withstand against high temperature and humidity conditions followed by sub-zero temperature. In this this 10 cycles are run between 85°C with 85% relative humidity and negative temperature -40°C.
Damp Heat Test: Damp heat test is performed to test effects of long exposure of humidity penetration and high temperature. In this test is performed by applying 85°C ±2°C temperature with relative humidity of 85% for uninterrupted cycle of 1000 hours.
In order to perform above mentioned tests, we make Environmental Test Chambers or Climatic Test Chambers that can perform these tests effectively. As solar panels come in different sizes and dimensions; therefore, solar panel environmental chambers are also made according their sizes. Whatever the panel size, small, medium or large; we can design the test chamber that meets your requirement under your price budget. Our Solar panel environmental test chambers are made of imported components and fabricated with stainless steel sheets using CNC and laser machines. Digital touch control panel enables you to save temperature, humidity settings with controllable rate and dwell times. Data recording facility is inbuilt. Imported branded refrigeration system lets you experience trouble free negative temperature for long hours. Special stainless steel rack system is provided to hold PV modules inside chamber. We supply our solar panel test chambers all over worldwide at factory price with complete installation, commissioning and after sales service.
Contact Haida for your custom solar panel testing needs.


Specification HD-E705-S
Temperature Range -50c To +100c
Humidity Range 40% To 98% Rh
Heating up -55°C ~ +85°C within  50   min
Heating down +85°C~ -55°Cwithin    60min
Dimension (Internal) (w x d x h) 1500 x 1500 x 3000 Mm
Dimension (External) (w x d x h) 2850 x 1700 x 3200 Mm
Ramp Variable, Temp. 0~5c / Min & Humidity 0~5%/Min

In Average, No Load

Accuracy Temp. ±1c, Humidity ±2.5%Rh
Interior Walls Stainless Steel 304
Exterior Walls Cold Rolled Stell Plate With Baking Finish

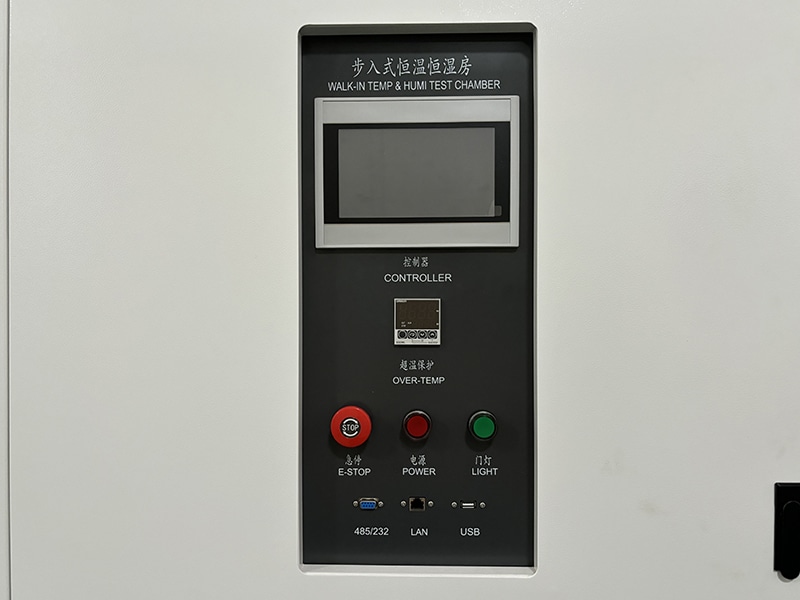

Temperature   & Humidity Measurement And Controller 32 Bit Control And Monitoring System.

Interface Facility With Rs232

Programmable   Temp. Humid. Controller

Viewing Window Multi Pane Glass Window Size
Port Holes 50 Mm Diameter For Wire Routing
Power  Supply  Requirement Three Phase, Ac380 v ± 10 %, 50 Hz
Sound Pressure Level <72db (a)
Condenser Cooling Water Cooled
