Electronic Foam Ball Rebound Fatigue Tester
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-F754 |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
- Categories
Product Detail

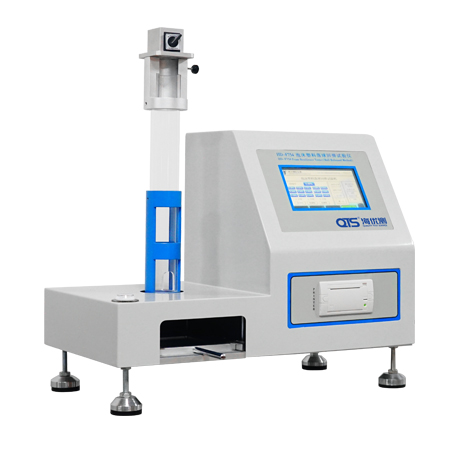

Foams Ball Rebound Tester is designed and manufactured in accordance with ASTM GB/T6670-2008, American Standard D3574and ISO8307 testing standards. And it suits for testing rebound performance of soft polyurethane foam ball. The tester through a given diameter and weight of iron ball dropping on foam sample at a certain height, and then calculate the percentage between maximum height of iron ball rebound and the height of iron ball dropping, this percentage is also called resilience ratio . Resilience ratio means foam rebound performance of poly foam. The tester adopts the microprocessor control, Chinese liquid crystal display, and it can print the test result. The tester is safe, reliable, with high measuring precision.
Specification:
|
Drop height
|
500±0.5%mm
|
|
Drop ball
|
Diameter:￠16±0.05 mm, mass 16.8g ± 1.5 g
|
|
Accuracy
|
<1.5%
|
|
Display
|
LCD Touch Screen interface
|
|
Sensor
|
Optical fiber sensor
|
|
Test result
|
Rebound height, rebound rate and average rebound rate after 5 test times
|
|
Sample size (L×W×H)
|
100 mm×100mm× 50mm
|
|
Machine dimension (L×W×H)
|
575×305×630mm
|
|
Test results
|
Output by built-in printer
|
|
Power
|
0.1KW
|
|
Configuration
|
Name
|
Details
|
|
Items |
Documents
|
Operation Manual*1 piece;
Factory Inspection Report*1 piece; Operation Video in USB flash disk with machine*1 piece |
|
Power line
|
1 piece
|
|
|
Plug
|
1 piece(Per your local plug standard)
|
|
|
Optical fiber ranging sensor
|
1 Set
|
|
|
Micro-Printer
|
1 Set
|
|
|
Touch screen
|
1 piece
|
|
|
PLC
|
1 piece
|
|
|
Electrical accessories
|
1 Set
|
|
|
Specimen holder
|
1 Set
|
|
|
Packing box
|
1 Set ( Two steel balls and one sampling rod )
|
Main Configuration:
A set of main machine (including height adjusting mechanism and releasing mechanism,)
Optical fiber sensors, a control box set (LCD touch screen control), can be connected with the USB interface
