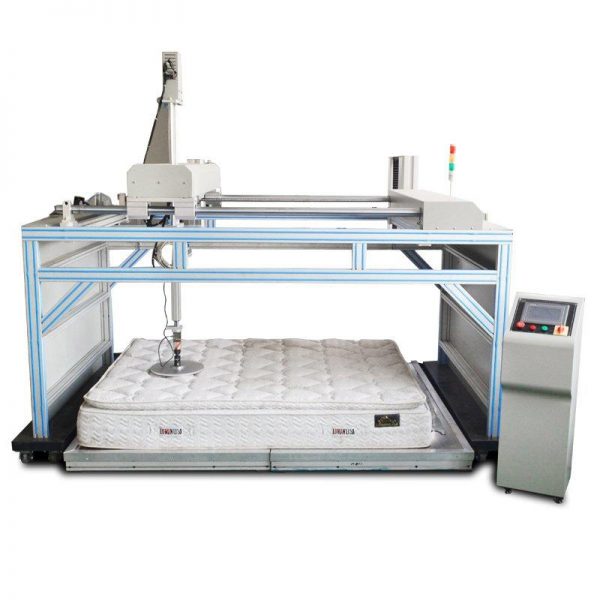

Mattress Compression Hardness Testing Machine
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-F779 |
| Certification | ISO |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
- Categories
Product Detail
Mattress Firmness Tester with a bottom convex spherical, rigid plate circular loading, recording the loading
curve force – displacement analysis data, to assess the mattress hardness and hardness level.
Mattress Firmness Tester is made by aluminum, beautiful appearance. Control system adopts special high precision intelligent ARAM controller, with special test software, can be run under the windows system, the whole software, the software interface is clear, easy to operate.
Specification:
| The platen weight and diameter | A round aluminum disk weighing 8 ± 0.2 lb (3.6 ±0.1 kg) with a diameter of 13.54±0.2 in. (344 ±5 mm) |
| Load senor | TECSIS brand, max capacity 2000N with accuracy ±1 %. |
| Test speed | 50mm/min |
| Test position | Five locations, the load platen can adjust and position the test point by motor automatically |
| Test stroke | At each test location, determine resistance values in 0.5-lbf (2-N) increments at 0.5, 1, 1.5, 2, 2.5, and 3 in. (12.5, 25, 38,50, 63, and 76 mm) with a tolerance of ±0.04 in. (±1 mm) of deflection of the top surface for innersprings and 0.5 and 1 in. (12.5 and 25 mm) with a tolerance of ±0.04 in. (±1mm) of deflection of the top surface for box springs. |
| Control method | PLC control, LCD touch screen interface |
| Other function | With USB port, output the test results |
| Power | 1 phase, AC 220V, 50/60Hz |
| Total power | About 300W |
Main configuration:
1) PLC inovance
2) touch screen kunlun tunneling (7 inches)
3) force sensor, tecsis, Germany
4) program independent research and development of haida
5) electrical accessories omron
6) electric cylinder Japanese SMC
7) motor Japan panasonic servo motor + drive, Taiwan European Union
8) ball screw Taiwan
