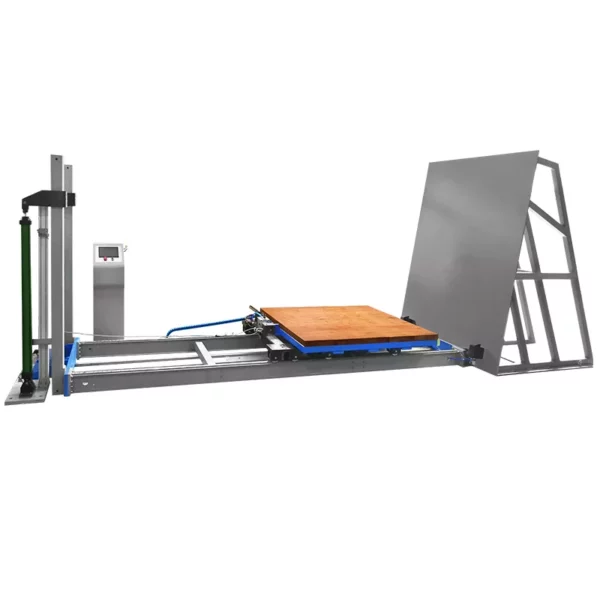

ISTA Inclined Impact Testing Machine
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-A523 |
| Certification | ISO |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
- Categories
Product Detail
Incline impact tester simulates the ability of product packaging to resist impact damage in the actual environment, such as handling, stacking of shelves, sliding of motors, loading and unloading of locomotives, transportation of products, etc. This machine can also be used as scientific research institutions, colleges and universities. Commonly used test equipment for oblique impact in colleges, packaging technology testing centers, packaging material manufacturers, foreign trade, transportation and other departments.
STANDARD SPECIFICATIONS:
| tem | Description |
| Load capacity | 600kg (can be customized) |
| Impact surface dimension | 1600*2200mm (can be customized) |
| Rolling carriage table dimension | 1220*1220mm (can be customized) |
| Control system | Touch screen controller |
| Max. slide length | 2200mm (can be customized) |
| Plane inclined to the vertical angle | 10° |
| Velocity range | 1.1~2.3m/s |
| Impact surface material | Rubber wood with two-rail steel track |
| Working condition | Temperature 0~40°, humidity ≤80% (no condensation) |
| Floor area | 7220*1800mm |
| Safety features | E-Stop
Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
DESIGN STANDARDS:
ISTA 3E, 3J & ISTA 6 (inclined impact test)
FEATURES:
1. Flexible positioning and electric trolley. It is easy to fix and achieve the changeable value of speed.
2. The height of trolley is relatively low so that is easy to fix the specimen; the strong impact resistance board can guarantee the fastness of the structure.
3. The trolley can be adjusted to be horizontal in order to fix the specimen for customer. The angle adjustment is driven by air cylinder which is flexible and convenient.
4. In order to keep the test staff completely safe, the tester is with remote control function.
5. Before testing, the customer only needs to fix the tester on the ground when stalling it, no other complicated operation.
