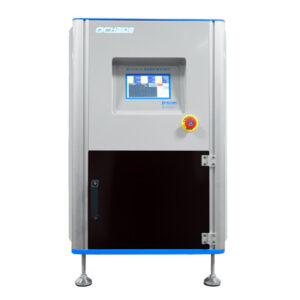

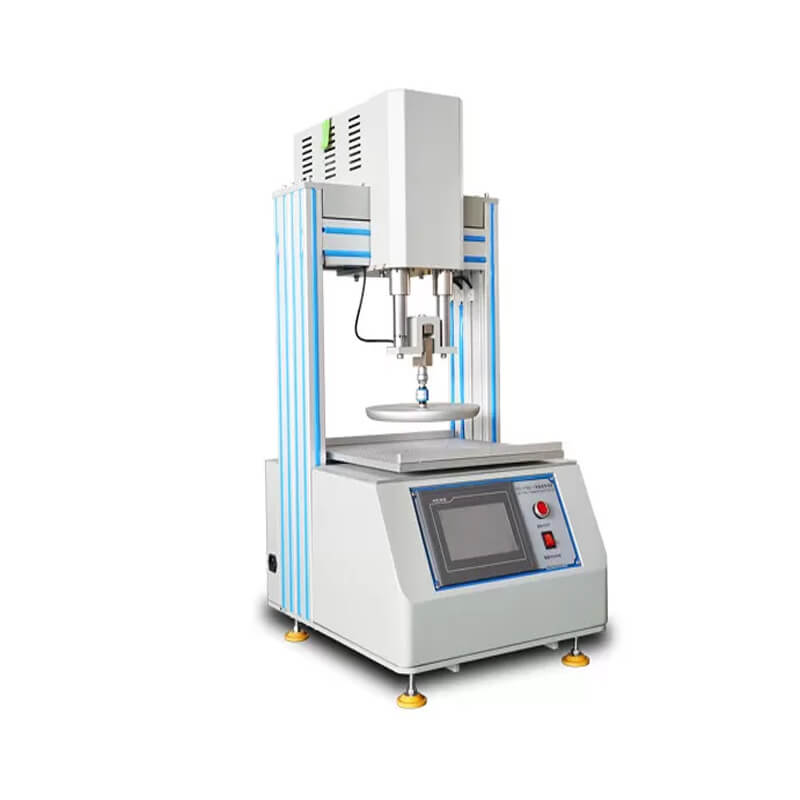

Foam Compression Fatigue Testing Machine

Minimum

1 SET

Delivery

15 days after order.

Model

HD-F750-1

Country

China

BrandName

HD

Package

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Payment

L/C, D/P, T/T

Price

FOB, CIF


The machine according to GB ISO 3385.1989 standard design and manufacturing. Foam compression fatigue testing machine is mainly used for cellular polymeric materials reciprocating compression test, measuring residual deformation rate. It can understand the dynamic fatigue properties of the material. China’s automobile industry to meet the standards QCT56-93 “car seat cushioning material performance test method.” Japan’s auto industry also meet criteria JASOB408-84 and other foreign standards.



DESIGN STANDARD ISO 3385

Max capacity 200kg
Plane plate Holes diameter 6mm, space 20mm
Indentor Having an overall diameter of 250 mm± 1 mm with a 25 mm± 1 mm radius at its lower edge, provided with a device for applying a maximum force of 750 N ± 20 N during one loading cycle.
Speed (70 ± 5) times per minute.(adjustable)
Sample size Test pieces shall be right parallelepipeds having sides of length 380 mm± 20 mm and a thickness of 50 mm± 2 mm.
Counter 6 digits cycle counter for test cycle setting
Display LCD touch screen
Additional function Adjust the test position during testing to compensate the force automatically
Dimension 760×780×1350mm
Power AC220V±10%, 50/60Hz, single phase
