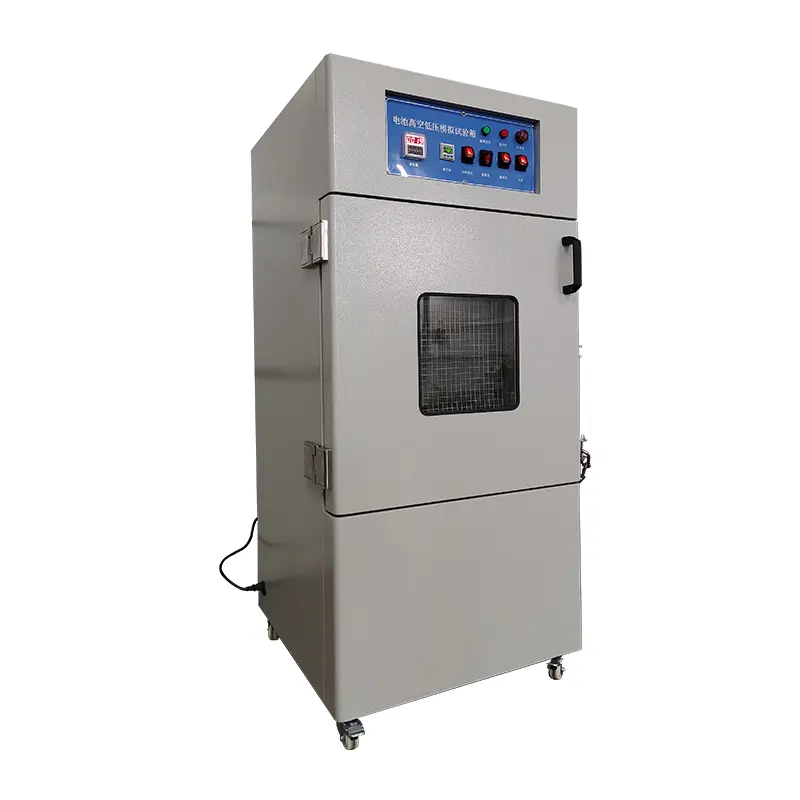

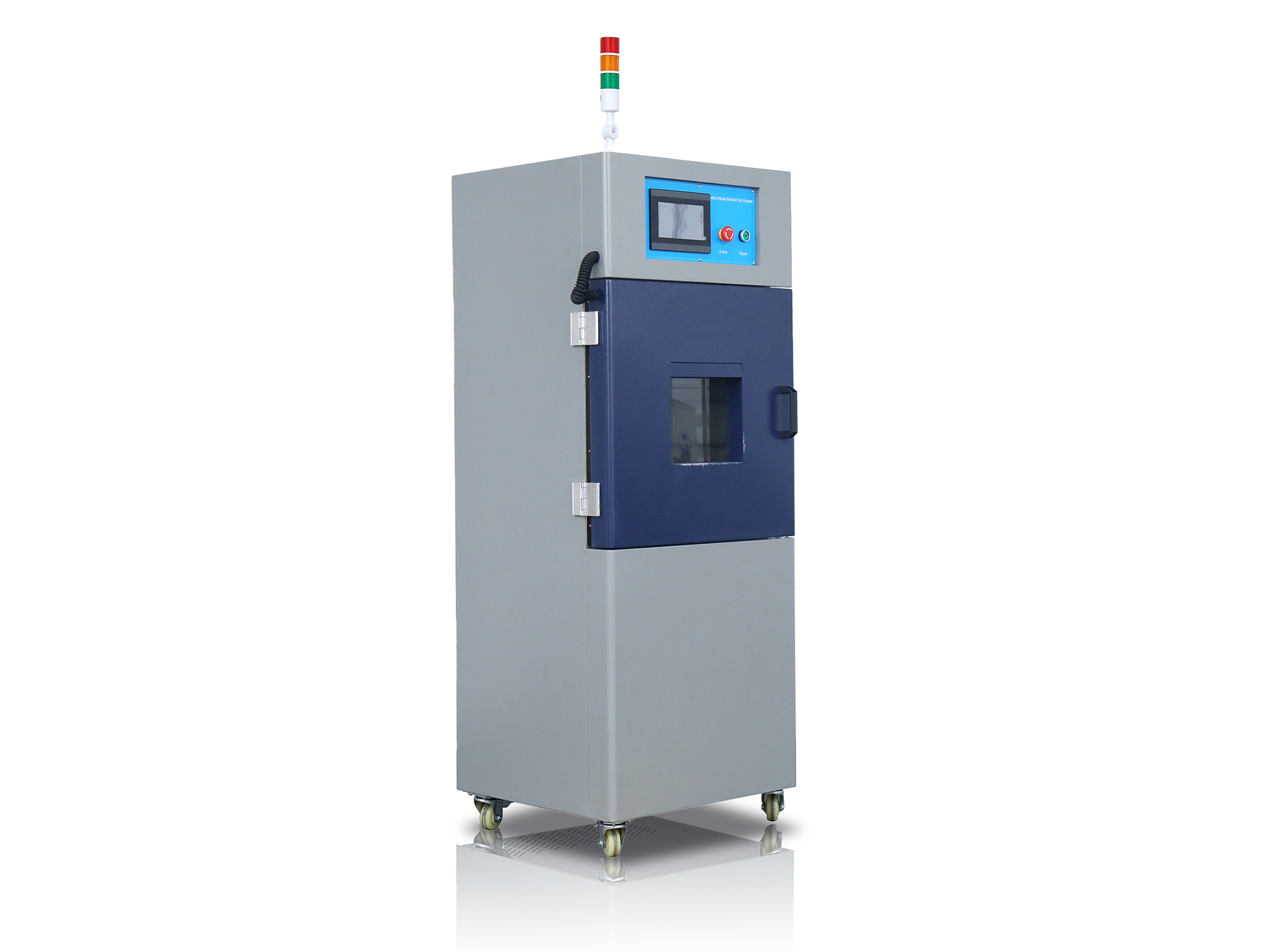

Battery high-altitude low-pressure simulation test chamber

MODEL

HD-H204

CERTIFICATION

CE,,ISO

BRANDNAME

Haida

Description

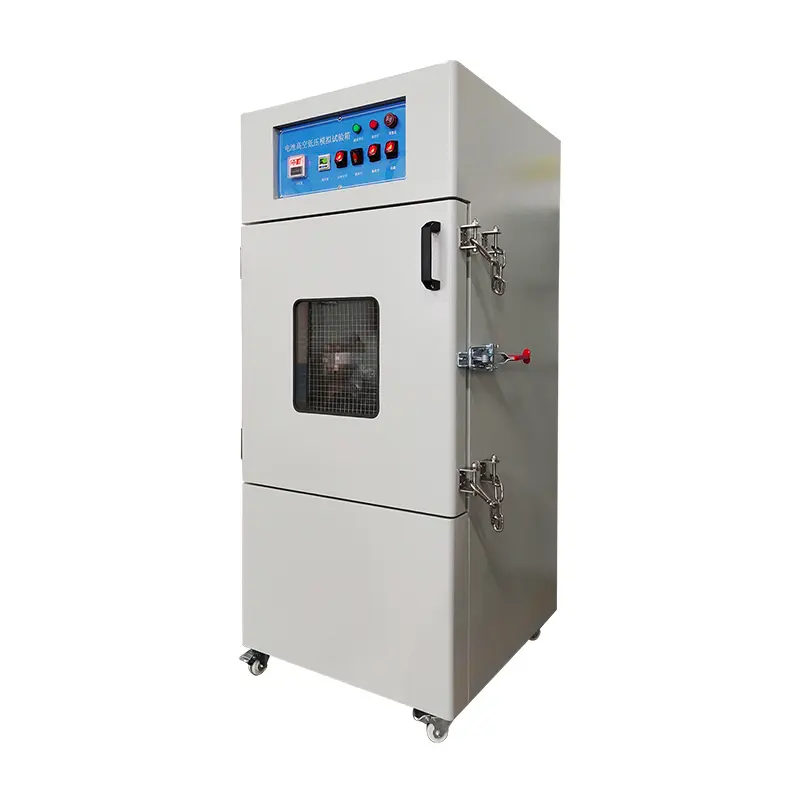

Battery Altitude Simulation Test Chamber is designed for UL, EN, IEC and other standard test requirements. It can reach the low-pressure storage state of the sample in a short time. It can automatically control the test cycle, monitor the air pressure change in the chamber during the whole process, and realize the automatic termination of the test.



Test Process
Battery and battery pack are stored for 6 hours at a pressure equal to or lower than 11.6kPa and an ambient temperature of (20±5)°C.

If the battery has no leakage, no exhaust, no disassembly, no rupture, and no fire, and every open circuit voltage of a test cell or battery pack after the test is not less than 90% of its voltage before the simulation test, which is considered qualified.



Standards
1. UN 38.3 “United Nations Manual of Tests and Standards for Transport of Dangerous Goods”
2. IEC 62133 “Battery (pack) composed of batteries and safety requirements for portable equipment”
3. UL 1642:2012 “Lithium Battery Standard”
4. GB/T 31485-2015 “Safety requirements and test methods for power batteries for electric vehicles”
5. GB/T 31241-2014 “Safety requirements for lithium-ion batteries and battery packs for portable electronic products”



Product features

1. The interior of the box is designed with 304 stainless steel and the bottom is affixed with Teflon insulation;
2 box with air vent at the rear, pressure relief port and internal lighting;
3. picking box door: single door left open, the door is equipped with a safety limit switch, the side is equipped with explosion-proof chain, close the door before you can operate the equipment to ensure the safety of personnel;
4. Test hole: There is a 50mm diameter test hole on the left side of the device, which is convenient to put in temperature, voltage, current and other collection lines.



Specifications

Model HD-H204
1.Internal material SUS#304
2. External material  A3 cold plate paint treatment, thickness 1.5mm;
3. Pressure range  0.5~100Kpa, common test air pressure is 11.6 Kpa;
4. Material of storage partition  stainless steel;
5. The number of storage partitions  1;
6. Control mode  button control;
5. Vacuum degree display  SMC digital display vacuum meter control, accurate display of vacuum degree, easy to set vacuum degree;
6. Timer  LED digital display, can be set within 0-99H99M;
7. Inner box size  400x400x400mm (width x depth x height);
8. Dimensions  650x620x1310mm (width x depth x height, including door lock);
9. Observation window  Two-layer tempered glass with a size of 250x250mm, equipped with stainless steel mesh;
10. Pressure fluctuation  ≤5%;
11. Equipment power supply  AC220V, 50HZ, 2.2KW;
