IPX7 & X8 Water Immersion Test Chamber
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-E710-4 |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
product introduce

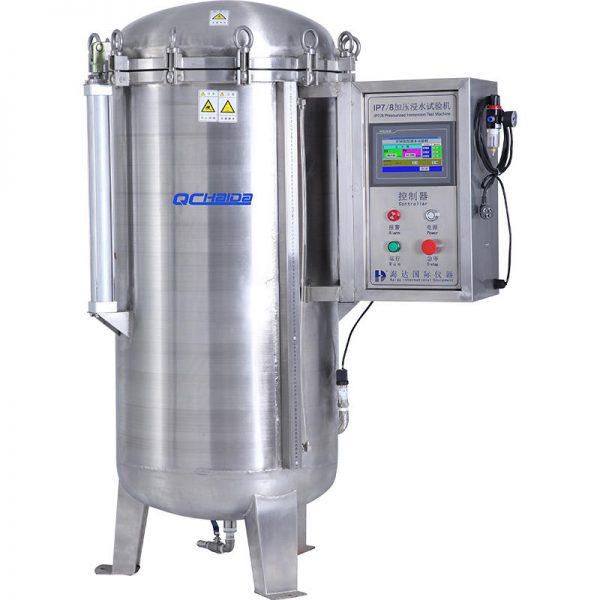

led IPX7 8 Water Immersion Test Chamber is suitable for electric products assessment, shell and seal in the rain enviroment can ensure that equipment and components good performance test. This product uses scientific design, makes the equipment can realistic simulation drop of water, splash water, water spray, jetting and immersion, etc., various kinds of enviroment. they can be automatic control.
Specifications
| Model | HD-E710-5 |
| Internal dimension | Diameter 600 * height 1000mm |
| External dimension | Diameter 820 * height 1200mm |
| Chamber material | SUS#304, thickness 2mm |
| Water depth | Simulate 50m depth by air compressor |
| Water pressure | Ambient to 0.5MPa, pressure gauge accuracy 0.25 degree |
| Timer | 0 ~ 99min, 99sec |
| Sample lift device | Portable stainless steel basket |
| Water level display | Water pipe with scale |
| Protection device | Pressure protection and anti-explosive device, water drain and pressure release device |
| Safety protection | Power overload protection, short circuit protection, grounding protection, alarm display |
| Power supply source | three-phase, 380V±10%, 50/60Hz (can be appointed) |
Structure
DETAILS
SUS304 # stainless steel plate and high-precision overall sub-arc welding, outer mirror polishing, inner layer rough throw, beautiful appearance, convenient cleaning and durability.
special silicone sealing ring (elasticity, never aging, the tube used for ten years).
the electronic control components are all imported LG, Panasonic, Omron, Anliang and other brands.
time control function, set the time 0-999 minutes, automatically stop when the set time is reached, and automatically drain the air inside the tank, the tester can open the can lid to take out the test sample.
bottom of the tank body has a water inlet valve and a drain valve, and a 5 meter water hose is provided.
the base is equipped with 4 activities with brake casters, easy to move.
