Product Center

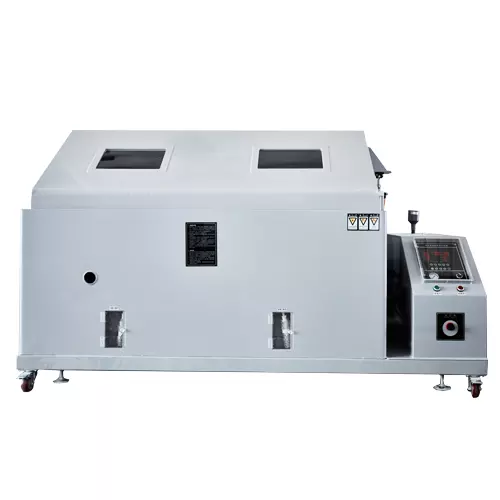

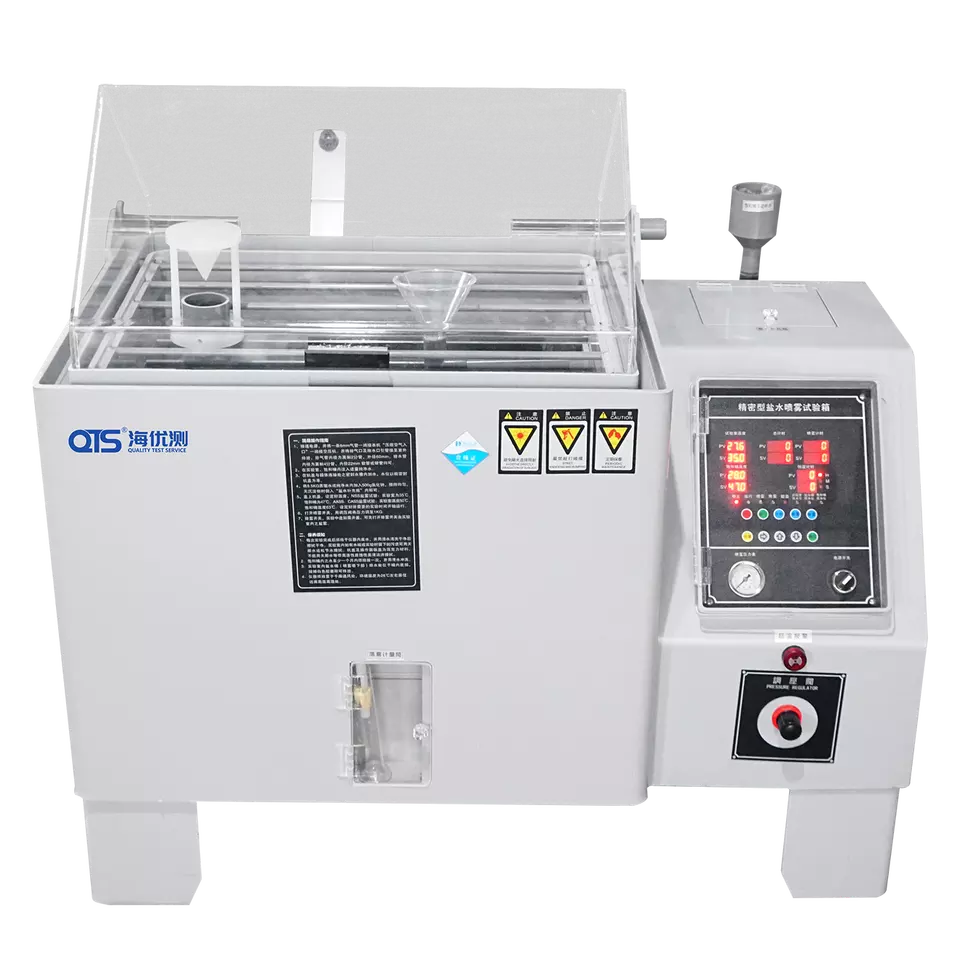

Salt Spray Test Chamber
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-E808 |
| Certification | ISO |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
Salt Spray Test Chamber Features
1.Durable 8 mm PVC construction, anti-corrosion and easy to clean.
2.Reservoirs with mixing system on stand.
3.Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4.Exposure zone lined with corrosion-resistant PVC sheets.
5.Clear cover allows viewing of test conditions.
6.Peaked cover prevents dripping of condensation onto samples.
7.Water seal and water level protection system.
8.Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9.Automatic DI water fills to humidifying tower.
10.Digital temperature control.
11.Integral over-protection on heaters.
12.Low water cut-off protection on humidifying tower.
Specifications
| Model | HD-E808-60 | HD-E808-90 | HD-E808-120 | HD-E808-160 | HD-E808-200 |
| Inner Chamber Size (W×D×H) | 600*400*450mm | 900*600*500mm | 1200*1000*500mm | 1600*1000*600mm | 2000*1200*600mm |
| External Chamber Size (W×D×H) | 1070*600*1180mm | 1410*850*1200mm | 1900×1300×1400mm | 2300×1300×1400mm | 2700×1500×1500mm |
| Equipment Material | Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C. rigid plastic board | ||||
| Temperature Range | 35℃～55℃ | ||||
| Temperature Fluctuations | ±0.5℃ | ||||
| Temperature Uniformity | ≦2.0℃ | ||||
| Temperature Precision | ±1℃ | ||||
| Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method(CASS) 50±1℃ | ||||
| Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1℃ Corrosion-resistant Testing Method(CASS) 63±1℃ | ||||
| Brine Temperature | 35℃±1℃ | ||||
| Spray Quantity | 1.0~2.0 ml / 80cm2 / hr (Collect at least 16 hours and take the average) | ||||
| PH | Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method (CASS)3.0~3.2 | ||||
| Lab Volume | 108L | 270L | 600L | 800L | 1440L |
| Brine Tank Capacity | 15L | 25L | 40L | 40L | 40L |
| Power | 1∮AC220V,10A | 1∮AC220V,15A | AC 1∮,220V,30A | ||
| Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection | ||||
| Accessories | Testing Salt/ Measuring tank/ Nozzle Equipment each 1 set | ||||
Structure
Product description
Salt Spray Test Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Experiment method
GB / T2423.17-2008 salt spray test method.
GB / T 2423.18-2000 “basic procedures for electric and electronic products Test Ka”.
GB / T10125-1997 Corrosion tests in artificial atmospheres – salt spray test.
GB / T10587-2006 salt spray test chamber technical conditions.
GB10593.2-1990 electric and electronic products environmental parameters measurements.
GB / T1765-1979 Determination of resistance to humidity, salt spray, weather resistance (artificial acceleration) of the film prepared test.
Salt Spray Test Chamber Available test methods
Neutral salt spray test (NSS test)
Salt spray test (SS test)
Acetic acid salt spray test (ASS test)
Copper accelerated instinct test
High-temperature humid heat test
Acid and alkali resistance pure titanium heat pipe
Adopt water vapor heating method
Titanium heating tube PID control heating so as to achieve temperature balance
