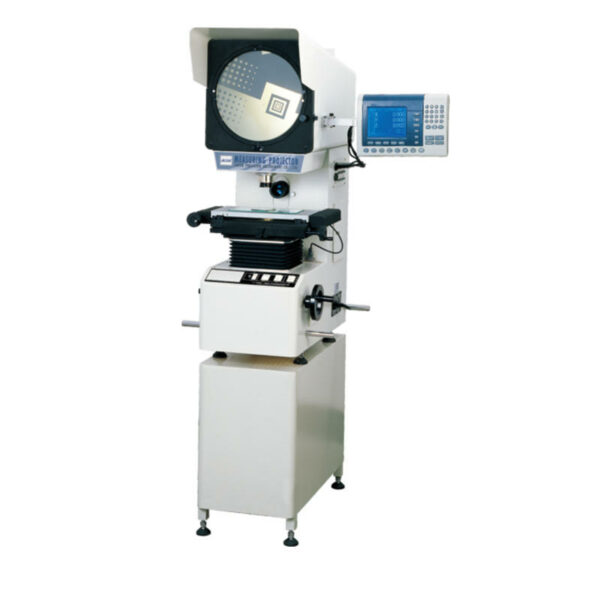

HD-U300-2 Digital Projector Profile

Minimum

1 SET

Delivery

15 days after order.

Model

HD-U300-2

Country

China

BrandName

HD

Package

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Payment

L/C, D/P, T/T

Price

FOB, CIF

APPLICATIONS& TEST PURPOSE

The quality of the optical system of this product is excellent, the image of the objective lens is clear, and the magnification is accurate. Under transmitted light illumination, the contour measurement error is less than 0.08%; the coordinate measurement indication error can reach (3+L/200) µM; it is equipped with a special micro-printer and foot switch, which is very convenient for data output and sampling. The workpiece image can be a full upright image or an inverted image. The Z-axis lift of this projector adopts a guide rail transmission method, which improves the stability and durability of the fuselage. The projector has clear imaging and accurate magnification.

ADVANTAGES

Compared with similar products, the measurement projector produced by our company has the following characteristics:
1. This instrument can efficiently detect the contours and surface shapes of various complex workpieces, such as: templates, stamping parts, cams, screw spinning, gears, forming milling cutters and other tools, knives and parts, as well as terminals, clocks, and steel Stone etc.
2. It has a wider range of applications. It is widely used in machinery, molds, meters, electronics, light industry and other industries. It is an indispensable measurement verification equipment for measurement rooms and production workshops.
3. Instrument measurement accuracy: (3+L/200) μm
4. Digital display resolution of X and Y coordinates: 0.0005mm
5. Data processing system: DP100 multifunctional data processing system, full Chinese display can do multi-point sampling, coordinate rotation, point, line, distance, angle detection RS-232 data output, can display measurement graphics.
6. It adopts 45°angle turbine and vortex rod to lift.

TECHNICAL PARAMETERS:

Model HD-U300-1
Work table X-axis travel (mm) 200
Y-axis travel (mm) 100
Metal table size (mm) 350×170
Glass table size (mm) 246×120
Z-axis travel (mm) 100(For Focus)
Measuring accuracy (3+L/200)um
Grating ruler resolution 0.0005mm
Projection screen screen size(mm): Φ300mm
Adopt Japanese photolithography technology, engraved with rice word line.
Rotary range :0~360°
Rotation angle display resolution :1’or 0.01°
Adopt Japanese rotary encoder
Objective Magnification 10X 20X 50X 100X
lens (Essential) (Optional ) (Optional) (Optional)
object view(mm) Φ30 Φ15 Φ6 Φ3
Work distance(mm) 77.7 44.3 38.4 25.3
Data processing system Multifunction data processing system, can measure point, line and angle.
Illumination 24V/150w Halogen lamps
Transmission and reflection lighting adopts 24V, 150W halogen lamps imported from Osram, Germany.
Cold Forced air cooling (3 Axial fan )
Machine Size 788*524*1152mm
Power 110/220V(AC).50/60Hz,400W
