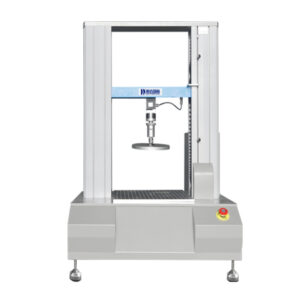

LCD Display Cardboard Ring Crush Tester ISTA Packaging Testing Machine
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-A513-2 |
| Certification | ISO |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
- Categories
Product Detail
Paperboard Edge Crush And Ring Crush Teste Machine is used to do the Ring Crush test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Pin Adhesive Strength Test (PAT), and Paper Tube Compress Test.This series can be used with a variety of materials testing machines to do all the tests in the paper packaging material, for a variety of paper quality testing.
Ring And Edge Crush Tester for Packaging Material is used to test the compression strength of corrugated paper and kraft paper sample in vertical direction, cooperate with various accessories, And to test the vertical compressive strength of test board, bonding strength and flat compression strength.
Applicable industry:
Paperboard Edge Crush And Ring Crush Teste Machine applied to test the anti-breaking strength of boxes for packaging, which of electronics, electrical appliances, wires, hardware, bicycles, handbags, food, footwear, clothing, furniture.etc.
Technical Parameters:
| Capacity (Optional) | 10, 20, 50, 100, 200 kg |
| Resolution | 1/100,000 |
| Precision | < 0.5% |
| Operation Mode | Computer |
| Display Mode | LCD |
| Platen | 100×100 mm or depending on the diameter of the flat crush sample |
| Compressed Space | 500 mm |
| Platen Parallelism | ± 0.05 mm |
| Ring Crush Sample | 152×12.7 mm |
| Edge Crush Sample | 25×100 mm |
| Test Speed | 12.7 mm/min |
| Dimension (L×W×H) | 790×510×1060 mm |
| Weight | Approx. 51 kg |
| Power | AC220V, 1.5A |
Design Standards:
TAPPI-T472, TAPPI-T808, TAPPI-T810, TAPPI-T811, TAPPI-T818, JIS-P8126, GB / T 2679.6, GB / T 6548, GB / T 2679.17.
