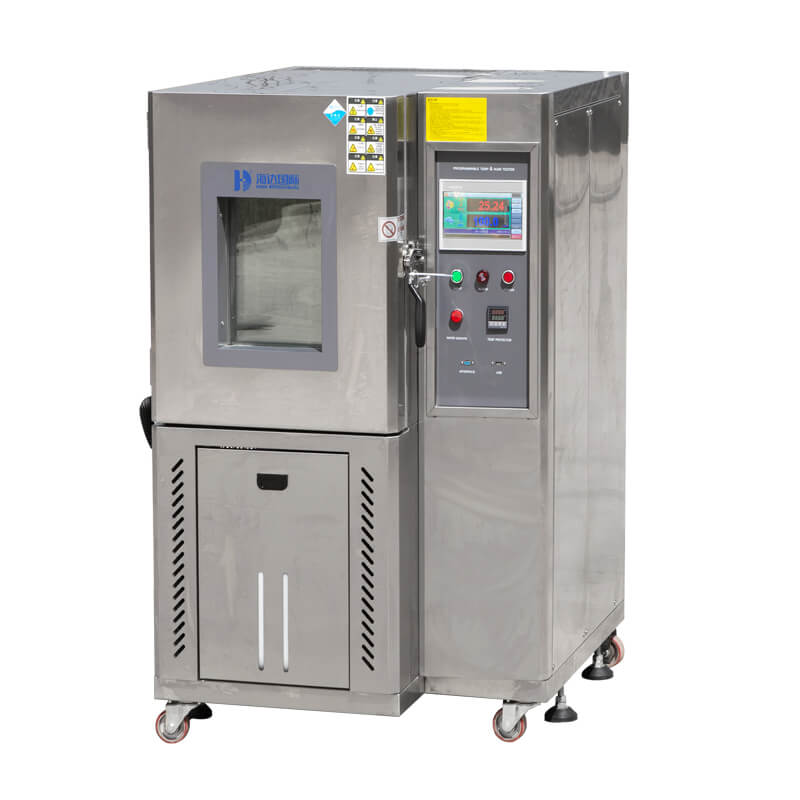

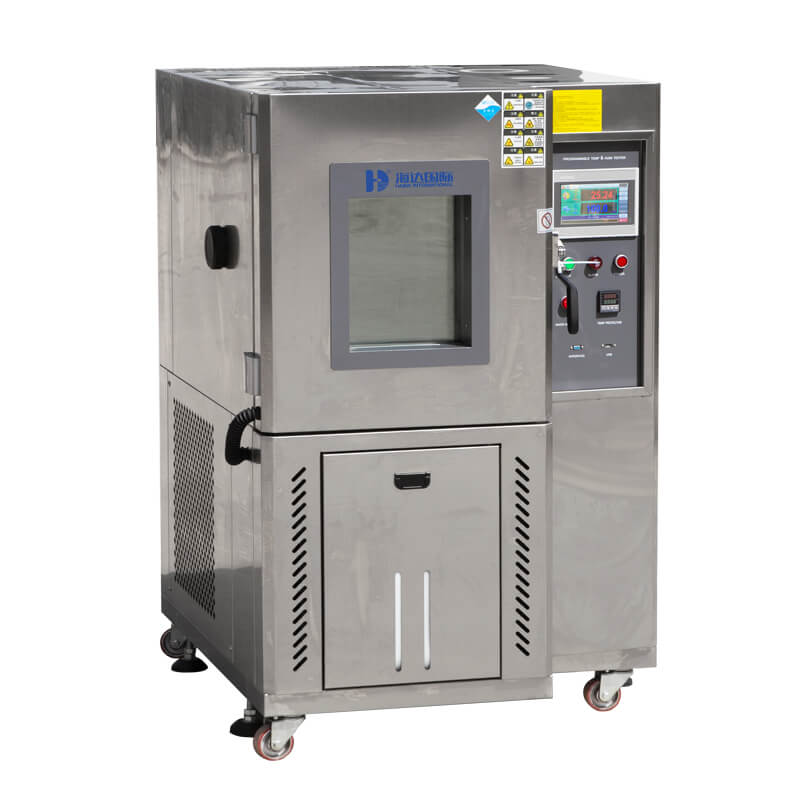

Climatic Test Chamber 100L

Model

HD-E702

Certification

CE,,ISO

Country

China

BrandName

HD

Temperature range

-20℃,-40℃,-70℃~150℃

Application

Climatic Test Chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-e

Climatic Test Chamber Compatible test standards

Climatic test chamber is used to test the performance of materials in various environments and to test various materials for heat resistance, cold resistance, dry resistance and moisture resistance. Suitable for the quality of electronic, electrical, mobile, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products.

Specifications

Model HD-E702-100 HD-E702-150 HD-E702-225 HD-E702-408 HD-E702-800 HD-E702-1000
Internal dimension 400*500*500mm 500*500*600mm 500*600*750mm 600*800*850mm 1000*800*1000mm 1000*1000*1000mm
External dimension 900*1070*1400mm 1000*1070*1500mm 1000*1170*1650mm 1100*1370*1750mm 1500*1180*1900mm 1500*1380*1900mm
Voltage(V) Sigle Phase 220V Sigle Phase 220V Sigle Phase 220V Three Phase 380V Three Phase 380V Three Phase 380V
Temperature range -20℃,-40℃,-70℃~150℃
Temp.& Humi.Adjust Way Balanced Temperature Humidity Control System(BTHC),Intelligent PID Regulation
Temperature fluctuations ≤±0.7℃ (without load and temperature stable)
Internal Chamber Material Stainless Steel 304
External Chamber Material Stainless steel or paint spray
Temperature uniformity ≤±0.7℃    (without load and temperature stable)
Temperature deviation ≤±1.0℃/ ±2.0℃  (without load and temperature stable)
Heating rate 3℃/min in average
Cooling rate 1℃/min in average
Humidity range  20%~98%RH
Humidity deviation 1 、≥75%RH:≤±3%RH ;2 、≤75%RH :≤±7%RH
Cooling Method Single-stage compression,Second-stage Compression;
Refrigerator Hermertically Sealed France Tecumseh Compressor or Semi-hermetic BOCK Compressor
Cooling Method Air-cooled

Structure

temperature-humidity-chamber-HD

Product Advantages

Temperature humidity chamber can simulate the natural environment ,such as -70℃–150℃ temperature range environment,and 20%–98% humidity environment.so this test chamber can do temperature test,humidity test and other environmental test in the programmable operating system.the key point of the climatic chambers be equipped with the tempered glass observation window,safety protection device,LCD touch screen controller.To ensure fast and efficient environment testing for the operator.
1.Touch Screen Control
2.Stable Performance
3.Data Recording
4.Leakage Protection
5.Over-temperature Protection
6.Customized Service

Cooling system

Adopt France Tecumseh compressor
Environmentally friendly refrigerant (R404a/R449a), adopts binary low tempera-ture circuit system design,which is convenient for different temperature regionsto work with different compressors
pro-img3
pro-img4

Test Hole

50mm test hole with themal insulation function

View Window

ouble-layer vacuum-strengthenedglass,inner glued sheet conductive film isheated and defrosted,observe clearly the specimen testing situation in the chamber
pro-img5
pro-img6

Door Handle

Adopt non-reaction,explosion-proof door handle,operating easily,safe and reliable.
