Paper Packaging Drop Test Equipment Series
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-520D |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
- Categories
Product Detail

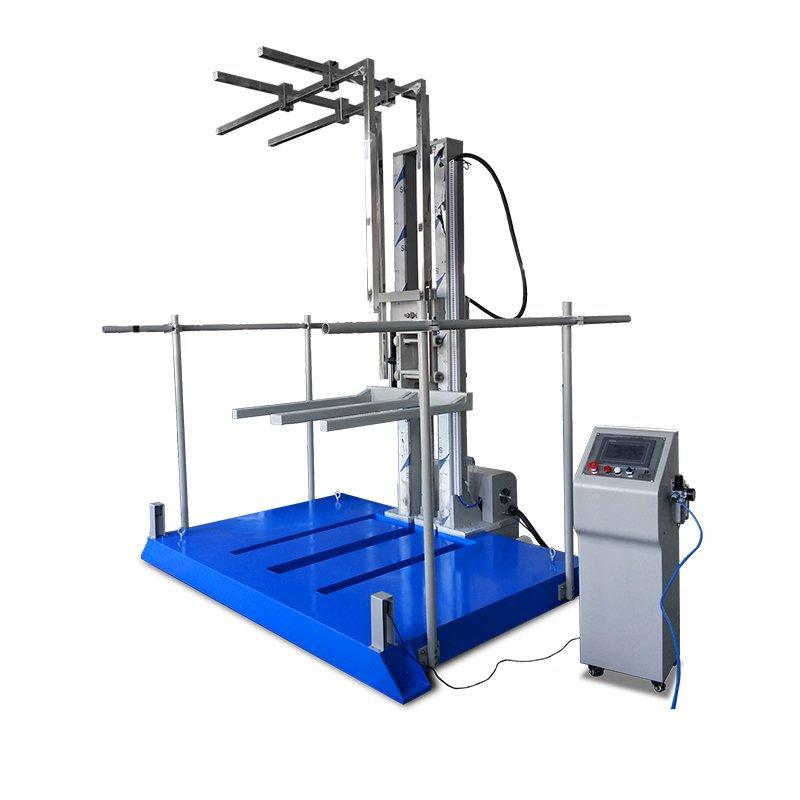

Touch screen drop test equipment description:
During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this device simulates the drop/ fall of a finished product to evaluate the damage. All the rhombohedrons, angles and faces of the products can be tested.
Usage:
Drop test equipment comprises an impact baseplate and an electric cabinet, where in a steel vertical frame is arranged on the impact baseplate; a screw rod is arranged in the vertical frame; a lifting seat is arranged outside the screw rod in a penetrating manner; a connecting rod is arranged on the lifting seat; a fixed plate is arranged on the connecting rod; a lifting bar is arranged on the fixed plate; an E-shaped support frame capable of moving up and down is arranged on the lower side of the lifting bar; a U-shaped fender rod is also arranged on the vertical frame; and a display screen is arranged on the electric cabinet. When the zero-drop test machine is in use, the electric cabinet is controlled to enable a package part fixed between the lifting bar and the support frame to drop to the impact baseplate, so as to carry out impact test on edges, corners and planes; the height of the lifting bar can be adjusted according to actual needs, so as to acquire test parameters in different situations; the package part has low probability of slippage during tests; and the zero-drop test machine is particularly suitable for doing drop tests on cubic package parts, and is cleaner, more environment-friendly and space-saving than the traditional hydraulic lifting structure.
Touch screen drop testing machine technical parameters:
| Max. sample weight | 100KG |
| Sample size | Three kinds of carton size in your file ”Inq Haida” |
| Drop platform area | As per three kinds of carton size in your file “Inq Haida” |
| Drop height | 100-1000mm |
| Drop test | Corners, edges , faces of sample |
| Drive mode | Motor drive |
| Protection device | Induction type protection device |
| Panel material | 45# steel, solid steel plate |
| Arm material | 45# steel |
| Height display | Digital |
| Operate mode | PLC |
| Driving mode | Taiwan Linear slider and copper guide |
| Drop method | Electromagnetic and pneumatic comprehensive support |
| Machine dimension (L×W×H) | 2000*1900*2450mm including control box (estimated) |
| Package | Strong wooden case |
| Package Dimension (L×W×H) | 2300*2200*2650mm (estimated) |
| Package Weight | 800KG |
| Power | Single phase, 220V, 50/60 Hz |
The table parameters is for the company Standard Model parameters, we support customer customization parameters
Purpose：
Drop test equipment is designed to test the product packaging fall by the damage, and evaluation of the transportation handling the Wings Drop Testing Machines in China process of impact resistance strength.
Characteristics：
Drop test equipment can be a face of packaging, horn, edges as free drop test, equipped with digital display highly display and using decoder the high tracking, which can accurately gives products drop height, and the drop height error less than 2% or 10 mm. The machine adopts single arm double column frame structure, with electric reset, electric control drop and electric lift device, easy to use; Unique hydraulic buffer device to greatly improve the machine service life, stability and security. The single arm Settings, can be easily placed products, drop impact Angle face and floor plane Angle error is less than or equal to 5 º.
Design standard
ASTM D5276-98, ISTA 1A (free drop)
ISTA 1A:
Relationship of weight and drop height
