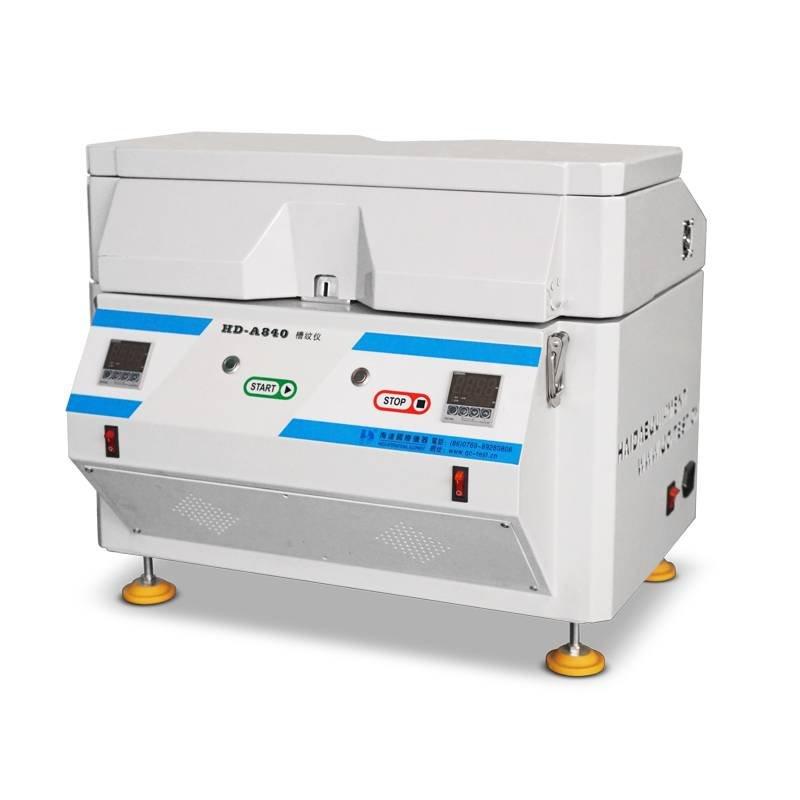

Concora medium fluter
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-A840 |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
- Categories
Product Detail
Product description
Vertical Fluter is used to make sample for CMT for testing flat crush strength and vertical crush strength of corrugating medium.
Designed standard
ISO 7263,QB/T 1061,TAPPI T809
Product parameter:
| Speed | 4.5r/min |
| Temperature Resolution | 1°C |
| Temperature Range | Room temperature-200°C |
| Work Pressure | (49～108)N |
| Standard Work Temperature | 175°C |
| Spring Tension | 100N |
| Dimension | 560mm*500mm*450mm |
| Power | Single phase, AC 220V±22V,50Hz |
Test Specimen
In standard atmospheric conditions processing to equilibrium state and then incised take samples in the same atmospheric conditions.Sample width 12.7 m m and 0.1 m m 152 m m m and 0.5 m long, vertical long side for the sample.The number of sample should guarantee can take 10 data effectively.

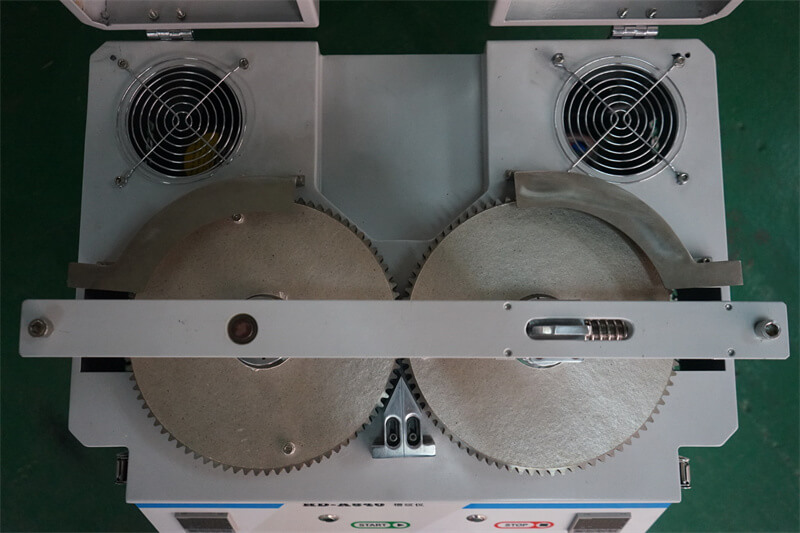

Product details pictures:
