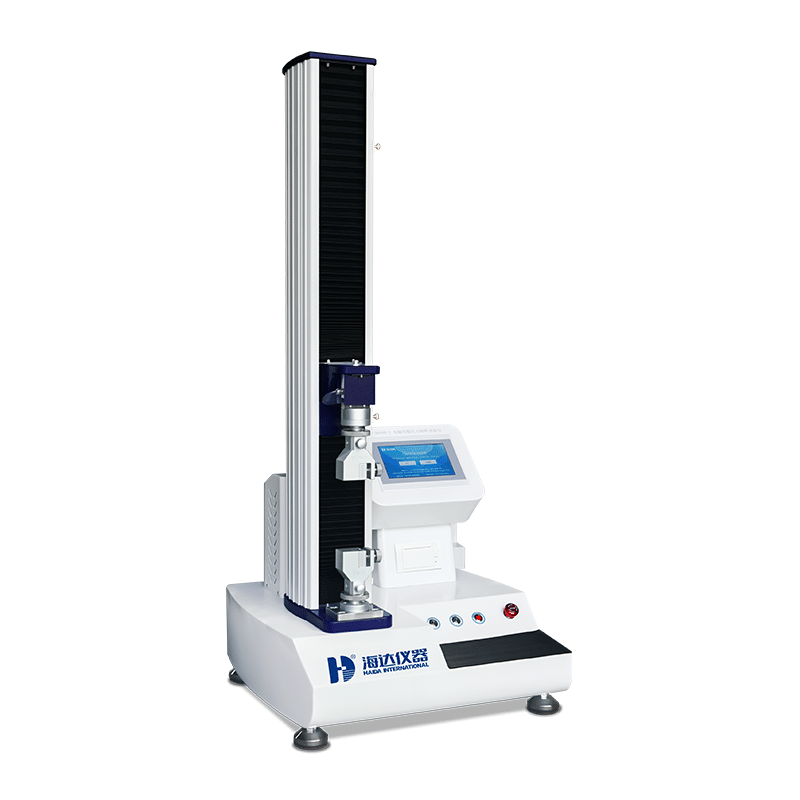

HD-B609B-S Universal Testing Machine

Minimum

1 SET

Delivery

15 days after order

Model

HD-B609B-S

Country

China

BrandName

HD

Package

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Payment

L/C, D/P, T/T

Price

FOB, CIF

Universal Testing Machine Features

Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).
Control system: a computer control with TM2101software;b, Back to origin automatically after the test, c, store data automatically or by manual operation.
Data transmission: RS232.
Displacement resolution: 0.001mm.
Graph scale automatic optimization can make a graph to display with the best measurement and can implement graphics dynamic switching in the test and has force-elongation, force-time, elongation-time, and stress-strain.
It can save results automatically after the test is finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum, and average, etc.
Users can set parameters of product materials such as length, width, thickness, radius, area, and so on.
Many languages random switching: Simplified Chinese, Traditional Chinese, and English.

Specifications

Item Specification
Frame capacity 200kg
Load cell brand Germany brand load cell for high accuracy
200kg (5,10,50,100kg are optional)
Load accuracy 0.5% F.S
Control system 400w servo actuator
Motor Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Vertical test space 900mm including fixture
Test speed 0.1~500mm/min (adjustable)
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat

Structure

HD-B609B-1

Variety of test items

The machine integrates a number of independent professional and independent tests such as tensile, tear,fixed elongation,tensile, compression,puncture holding force,etc,0.5 degree of force accuracy.

Sensor

Installed protective device is not outside interferenceThe test is more accurate.
HD-B609B-S (2)
HD-B609B-S (5)

Emergency stop Switch

When the machine is in operation havean abnormal situation need to stop unit,this button makes the instantaneous
stop of the unit.

Limit Protection Device

Double protect the load cell and machine during operation.
HD-B609B-S (7)
HD-B609B-S (4)

Built-in Printer

Can print out the testing reportdirectly once the testing finished rameters.
