Ring Crush tester & Edge Compressive Tester
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-A513-B |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
- Categories
Product Detail
pecifications

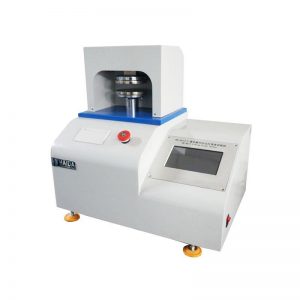

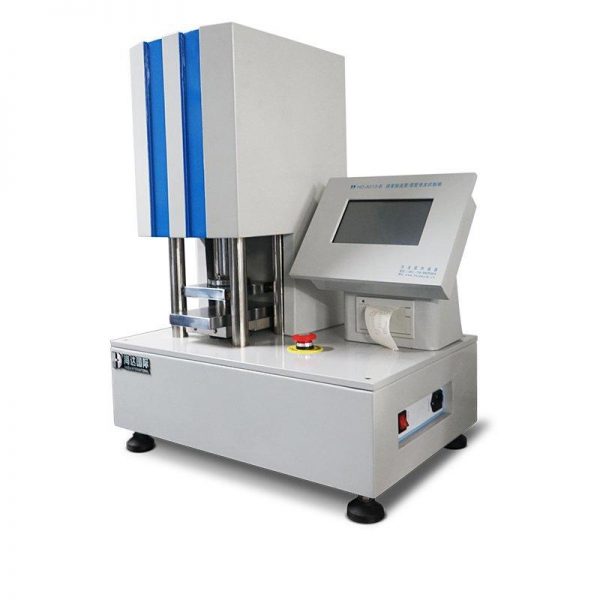

Ring Crush and Edge Compressive Tester
1.2 years warranty
2.multi-functional equipment
3.paper ,corrugated box
4.with stock
Introduction:
Ring Crush tester and Edge Compressive Tester can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.
The main technical parameters :
Ring Crush tester and Edge Compressive Tester
| Capacity (Optional) | 10, 20, 50, 100, 200 kg |
| Resolution | 1/250,000 |
| Precision | < 0.25% |
| Operation Mode | Computer |
| Display Mode | LCD |
| Platen | 100×100 mm or depending on the diameter of the flat crush sample |
| Compressed Space | 500 mm |
| Platen Parallelism | ± 0.05 mm |
| Ring Crush Sample | 152×12.7 mm |
| Edge Crush Sample | 25×100 mm |
| Test Speed | 12.7 mm/min |
| Dimension (L×W×H) | 790×510×1060 mm |
| Weight | Approx. 51 kg |
| Power | AC220V, 1.5A |
