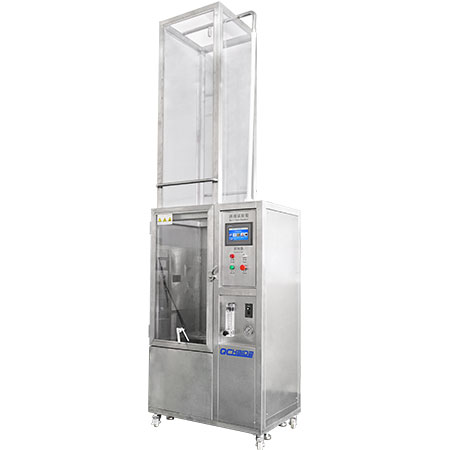

IPX5 & IPX6 IPX6K Water Shower Test Chamber
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-E710-3-1 |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
Describe
IPX5 & IPX6 Water Shower Test Chamber is suitable for simulate the wind and heavy rain, water splashing, flushing, or violent waves test for electrical and electronic products, to check whether the enclosures and covers of samples are in good condition.
Specifications
| Type | VERTICAL TYPE | HORIZONTAL TYPE |
| Internal chamber size | 800Wx800Dx800Hmm | 1000Wx1000Dx1000Hmm |
| External chamber size | 1200Wx900Dx3300Hmm | 3500Wx1250Dx1800Hmm |
| IP Code | IPX5 | IPX6 |
| Internal diameter of spray nozzle | 6.3mm | 12.5mm |
| Delivery rate | 12.5l/min±5% | 100l/min±5% |
| Core of the substantial stream | Circle of approximately 40mm diameter at 2.5m distance from nozzle | Circle of approximately 120mm diameter at 2.5m distance from nozzle |
| Chamber material | Internal: SUS304 stainless steel, external: stainless steel | |
| Turn plate | Φ500mm | |
| Spray duration time | 3,10,30,9999 min(adjustable) | |
| Operating time | 1-9999min(adjustable) | |
| Controller | PLC touch screen | |
| Turntable | Diameter 300mm, rotate speed 3±1R/min | |
| Distance from nozzle to enclosure surface | Between 2.5m and 3m | |
| Power supply source | 3-phase, 380V±10%, 50Hz (can be appointed) | |
Structure
Control System
The frequency converter is used to control the speed to effectively ensure that the test runs according to the standard.
Equipped with water filter.
PLC touch screen.
Layout of the electrical board is reasonable, the wiring is firm and the marking is clear.
Water Pressure Control System
It is designed and manufactured according to the technical requirements of IEC 60529.
Device composition:a pressurized water pump, a pressure regulating valve, a flow regulator, an electric control cabinet, a water pipe, a diversion device, a spray bracket and a water tank, and the water can be recycled.
Chamber Structure
Material:SUS stainless steel plate.
Visual glass door is convenient for observing the condition of the test sample in the body of the test chamber.
High-quality fixed PU movable wheel (easy to move).
Equipped with water storage tank, test water spray system, table rotation system, water recyclability.
