Product Center
Ozone Test Chamber
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-E801 |
| BrandName | China |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |

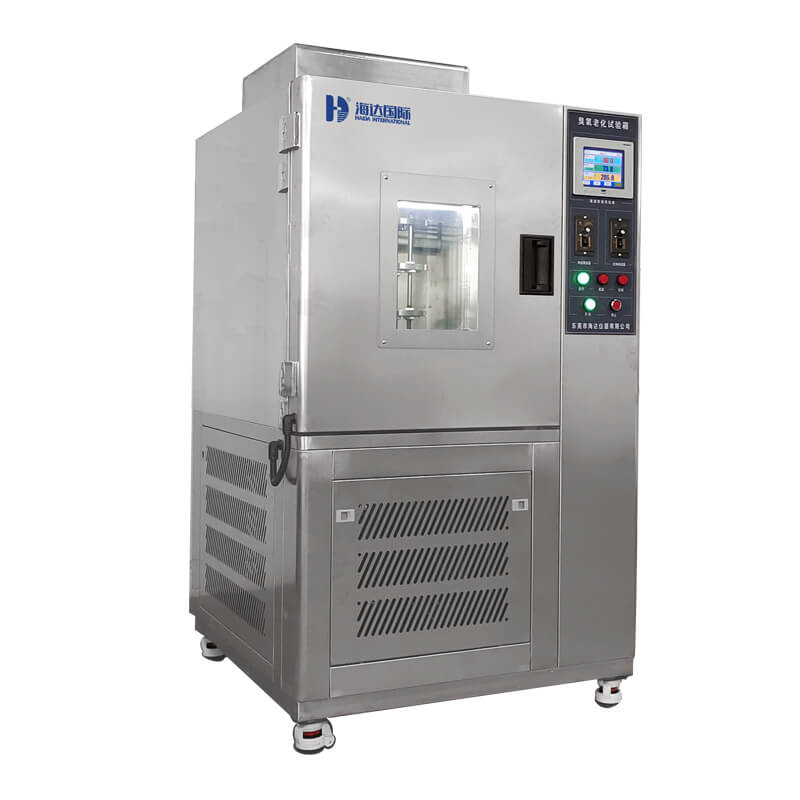

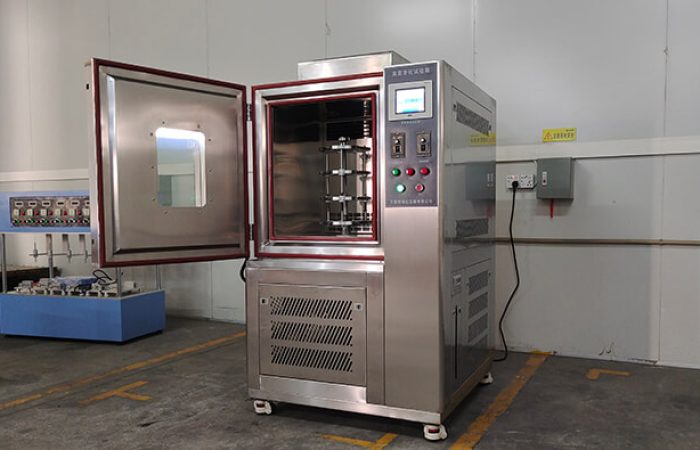

Ozone Test Chamber Features
1, ozone aging chamber Internal material adopts high quality mirror stainless steel for ozone resistance.
2, Insulation material: high-density glass fiber
3, Use long axial fan motor and high and low temperature resistant aluminum alloy wing type wind turbines to force vertical air circulation.
4, Chamber door adopts double layer high and low temperature resistant silicone seal ensure the airtight test area.
5, Chamber bottom has high quality caster for convenient move.
6, Observation window uses multilayer hollow tempered glass.
7, Exhaust system: exhaust the high concentration ozone from the test chamber to avoid to poison.

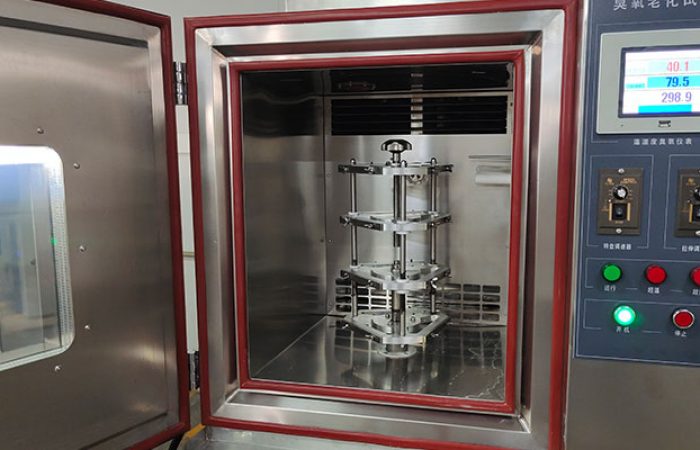

8, Optional: Built-in 360 degree rotation sample holder, including 3 sets static tensile fixture and 3 sets dynamic tensile fixture.
Specifications
| Model | HD-E801 |
| Internal dimension (WxDxH) | 500*600*500mm |
| External dimension (WxDxH) | 1000*1000*1750mm |
| Temperature range | RT+10~ 60℃ (suggest to use 40℃±2℃) |
| Temperature Fluctuation | ±1℃ |
| Ozone concentration | 50~1000 pphm, adjustable |
| Ozone concentration deviation | ±10% |
| Sample holder | SUS#304 stainless steel |
| Temperature controller | Programmable touch screen controller |
| Ozone concentration analysis | Concentration analysis meter |
| Ozone generator | High pressure silence discharge type |
| Protection system | Leakage, short circuit, over temperature, over heat |
| Test criteria | ASTM D1149, ISO 1431, JIS K6259… |
Structure
Product Description
The ozone content in the atmosphere is rarely the main factor of rubber cracking, Ozone Aging Test Chamber simulate and strengthen the ozone in the atmosphere conditions, effects of ozone on the law of the rubber, rapid identification and evaluation of rubber anti-aging properties of ozone and antiozonants the method of protection efficacy of anti-aging and then take effective measures to improve the life of rubber products.

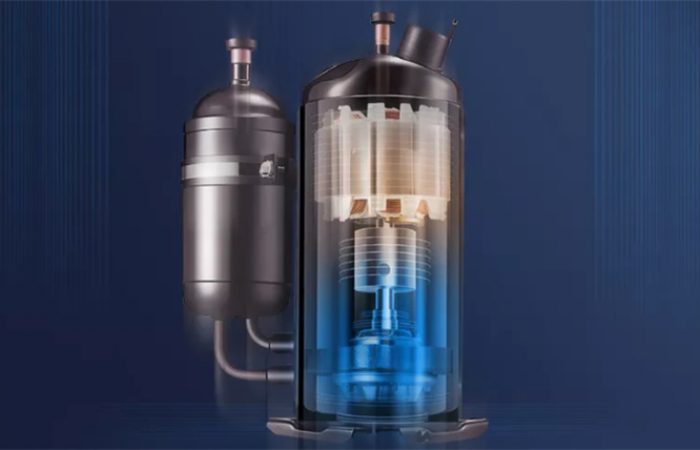

FRANCE TECUMSEH COMPRESSOR
Filled with Eco-Friendly refrigeration
High-speed heating heater and high-temp MgO Powder which ensure response quickly and long lifespan.
HIGH PRECISION TOUCH SCREEN CONTROLLER
With USB data transfer interface, the results will be displayed in the computer and it can print temperature and humidity and time curve, for the test process data storage and playback to provide a strong guarantee.
CONTROL SYSTEM
1, With imported micro-computer LCD controller to control the temperature.
2, PID control.
3, With auto calculation function to reduce the setting inconvenience.
4, Heater: fin type radiator pipe nickel-chromium alloy u-shaped heater, auto calculate with high accuracy PID + SSR control.
5, Temperature measurement: SUS#304, PT 100.
