IP Rain Spray Test Chamber

Minimum

1 SET

Delivery

15 days after order.

Model

HD-E710-2

Certification

CE,,ISO

Country

China

BrandName

HD

Package

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Payment

L/C, D/P, T/T

Price

FOB, CIF

Water Spray Test Chamber IPX3 & IPX4 Application

Water Spray Test Chamber IPX3 & IPX4 is suitable for testing the adaptability and reliability of electrical and electronic products, materials, spare parts, etc, in the condition of rain and temperature. Can also be used to external lighting and signal device and vehicle lamps shell protection.

Specifications

Model HD-E710-2
Internal dimension (W*D*H)1000*1000*1000mm
External dimension (W*D*H)1300*1100*1700mm
Oscillating tube Radius 400mm
Oscillating angle IPX3: spray ±60° from vertical line to each side, total 120°
IPX4: spray ±180° from vertical line to each side, total 360°
Oscillating speed IPX3: 2*120° for 4s
IPX4: 2*360° for 12s
Spray nozzle Diameter: 0.4mm, removable
Ensure the water sprays in a line and without tolerance
Distance between two nozzles 50mm
Turntable diameter 500mm
Turntable rotation speed 1-3 cycles/min
Water flow of each nozzle 0.07 L/min +5%
Test duration 1~999h999min, adjustable
Pressure gauge 80-150Kpa
Distance from nozzle to specimen surface 200mm
Chamber material Stainless steel, with observation window
Safety protection device Short circuit protection, grounding protection, water shortage protection, audible and visual alarm
Power supply source 1-phase, 220V±10%, 50Hz (can be appointed)



Structure

15248841232582

DETAILS

IPX34 Rain spray test room Chamber material: SUS stainless steel plate

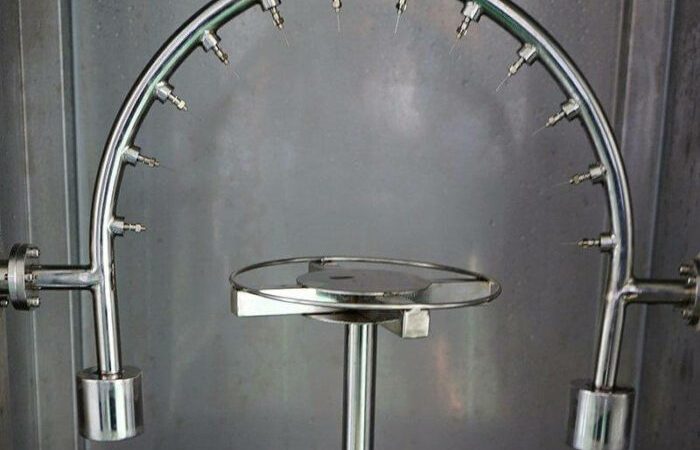

Stainless steel swing pipe: the radius is R400mm, and 24±1 nozzle is evenly distributed every 50mm on the entire circumference. The pendulum tube drive device uses a motor to adjust the pendulum speed of the pendulum tube. It is realized by mechanical transmission such as motor driven reducer, eccentric wheel mechanism, gear rack and pinion. Adjust the desired angle by means of an eccentric mechanism.
Stainless steel table: with rotation speed regulation function.
Tempered glass door: can directly observe the working state of the rain.
Detachable special nozzle: made of copper, specially processed, the spray direction of each nozzle can be adjusted (within 45 ° range), and finally the adjusted nozzle can be adjusted to a plane, facing the same center point. (This is one of our know-how).
Stainless steel water supply tank: equipped with water pump, water quality filter, inlet float valve, drain valve.
Drainage hole: at the bottom of the chamber to be able to discharge quickly, no water accumulation.

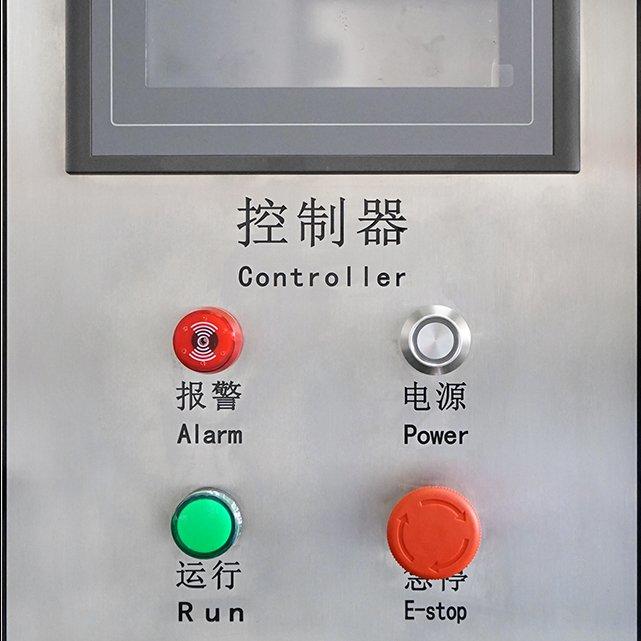

CONTROL SYSTEM

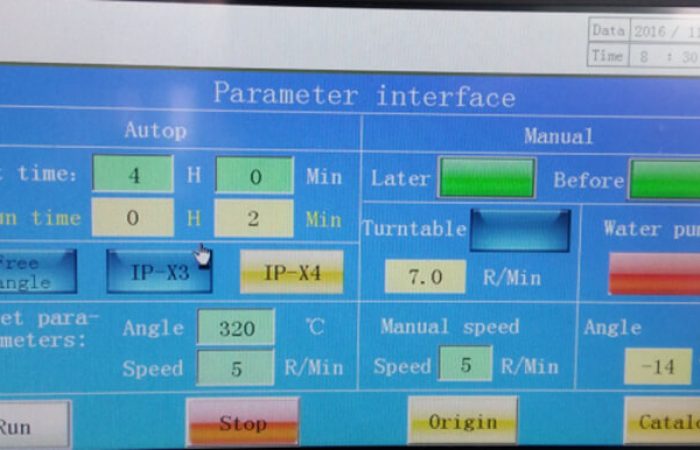

High-precision LCD program controller to complete the time and sequence control of the entire system;
Imported frequency converter to control the speed effectively ensures that the test runs according to the standard;
