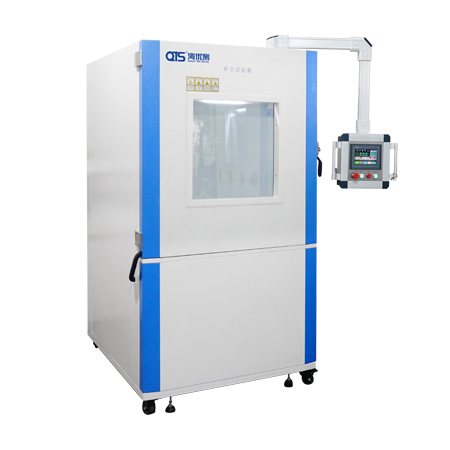

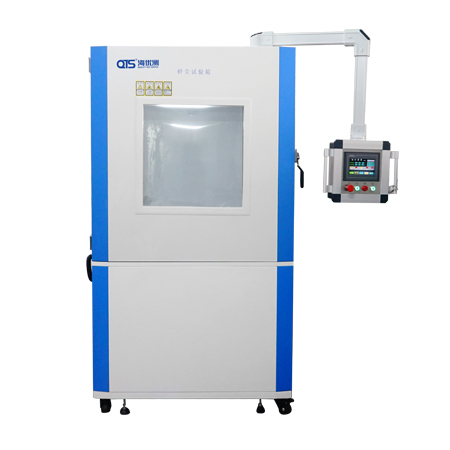

Dust proof test chamber 1000L
| MINIMUM | 1 SET |
|---|---|
| DELIVERY | 15 days after order. |
| MODEL | HD-E706 |
| CERTIFICATION | ISO9001:2008,CMC, CPA |
| COUNTRY | China |
| BRANDNAME | HD |
| PACKAGE | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| PAYMENT | L/C, D/P, T/T |
| PRICE | FOB, CIF |
1000L Sand dust test chamber Features
1. Formed using CNC machining box, nice shape, and no reaction by the handle, easy to operate.
2. Imported high grade stainless steel inner tank (SUS304) mirror panels, use of A3 steel box outside the gall spray, increasing the appearance of the texture and cleanliness.
3. Equipment containing dust vertical circulation of air, dust can be reused for testing; device itself has a good sealing performance, test, laboratory test can clearly observe the situation; device equipped with a vacuum system to meet the needs test; equipment dust the bottom of the device can be replaced.
4. Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.
5. Test with 50mm diameter holes for the external test power line or signal line.
Specifications
| Item | Specification |
| Inner chamber size | 120 * 120 * 120cm |
| External size | 170 * 150 * 190cm (approx.) |
| Air pressure | 86~106kpa |
| Studio temperature | RT~60’C, adjustable |
| Amount of talcum powder | 2kg per cubic meter of the test chamber volume
Can not have been used for more than 20 tests |
| Powder type | Talcum powder |
| Aspirator flowing quantity | 0~6L/min |
| Pressure tolerance | 0~2kpa |
| Metal net size | Wire diameter 50um, width of a gap between wires 75um |
| Testing time | 0~999h88m99s, adjustable |
| Blower | Centrifugal fan |
| Blowing dust cycle | Interval control, adjustable |
| Chamber material | SUS#304 stainless steel |
| Door material | Tempering glass |
| Control interface | LCD touch screen |
| Vacuum system | Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump |
| Weight | 400kg |
| Power supply | AC380V, 50/60Hz, three phase |
Structure
Product Description
The 1000L Sand dust test chamber is mainly and widely used to test products sealing and dust resistance in labs of many fields, like Electrical, electronic, automobile, motorcycle and sealing products/parts manufacturing industries.
Design criteria:
IEC 60529, IPX5/6, GB2423.37, GB4706, GB 4208, GB 10485, GB 7000.1,GJB 150.12, DIN…
Chamber structure:
1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during testing;
3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
Working condition:
1, Temperature: 15~35’C; Relative humidity: 25~75%R.H;
2, Without strong vibration and Electromagnetic effect around;
3, Test chamber should be stable placed and keep balance;
4, Installation place should keep good ventilation, and without strong airflow, high dust and corrosive material.
