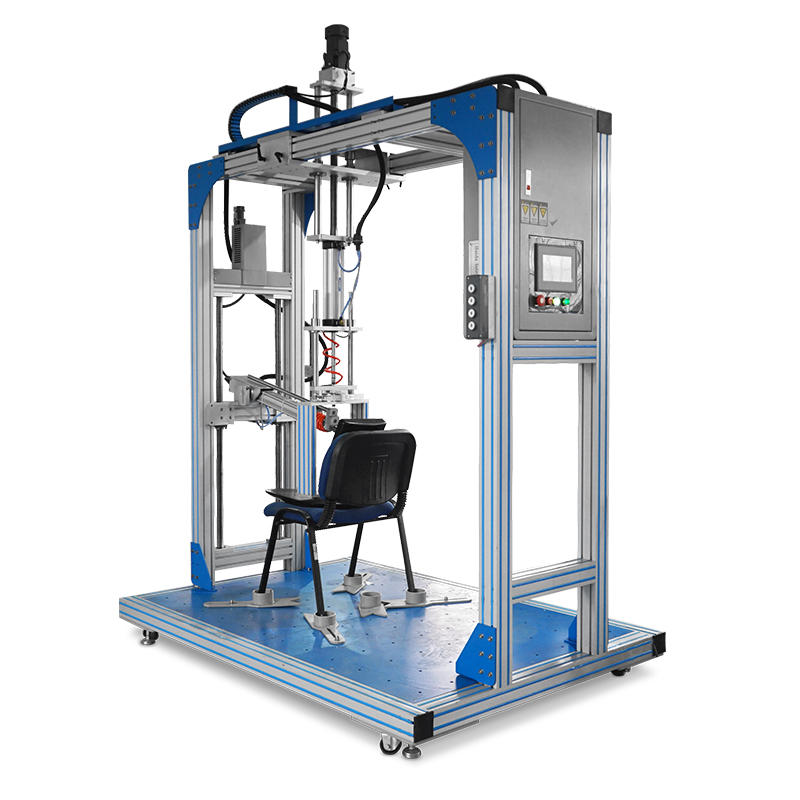

Chair Seating and Back Durability Tester




15 days after order.








Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.


L/C, D/P, T/T



Product Description:
Chair Base Vertical Force Tester is used for the vertical pressure testing, destructive testing and fatigue testing of the office chair Ipomoea base (Star Base), repeated pressure loading in setting force and test cycle as the fatigue test. All holding pressure time and cycle number of tests can be adjusted.


Product features:
Control system
1. Touch screen with PLC, with power off memory function;
2. This equipment is multi-functional test equipment, can choose the cylinder output force; 3. With sample damage alarm stop function, in the test process, sample damage touch sensor will immediately stop;
4. Automatic pressure regulating or manual pressure regulating valve to ensure the cylinder output force stable and reliable, digital display of the cylinder output force value.
Exquisite craft safe and easy to use
5. Installation test fixture adopts quick connector, convenient and quick;
6.Aluminum frame structure, stainless steel testing platform, beautiful structure;
7.position stroke using electric lifting, air pressure adjustment using servo proportional valve automatically adjust the size of air pressure.


Technical parameter:

Capacity 2000kg (Transcell senor )
Unit switch gf,kgf, N, LBf, W, KN, T
Load resolution 1/250,000
Load accuracy within ±0.5%
Max stroke 1000mm including grip
Max sample width 1000mm
Test speed (0.01-100)mm/min (computer input)
Drive device imported servo motor
Stroke resolution 0.001 mm
Weight 452kg
Power 1 phase, AC 220V, 10A
Accessories one computer with operation software


Computer operation:

With “Windows” work platform, all parameters set by dialog, easy to operate;
Software language all in English;
Edit the test reports by yourself, all test parameters in main interface; Can choose time and elongation, elongation and force and others curve;
With variety unit, metric system can switch;
With automatic back and calibration function; with magnification function to reach suitable graph;
Test speed can settable by customer;
With define test method, all test parameters can analysis automatically;
Get the test reports automatic and print out in A4 paper, also with curve or save in Word format.


Design standard:
BIFMA X5.1-2011 7
