Product Center

Temperature Humidity Test Chambers

Model

HD-E702

Certification

CE,,ISO

Country

China

BrandName

HD

Temperature range

-20℃,-40℃,-70℃~150℃

introduce

Temperature Humidity Test Chambers is designed for testing the capability of heat-endurance,cold-endur.

Features

Temperature humidity test chambers, also known as Climate chamber or Environmental Test Chamber.
Temperature humidity test chambers can simulate the different indicators of constant temperature and humidity climate quickly and accurately for testing products which need to check their performance of temperature testing (-40℃~+150℃), humidity testing (20~98%R.H.),both of temperature and humidity testing at the same time.chamber power can be customized.
Environmental Test Chamber which also call Constant Temperature Humidity Chamber is designed for detecting the material under a variety of environmental test equipment and performance of a variety of materials holding test, cooling-off test, heating-up test, moistening test and drying test… Suitable for electronic, electrical, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products quality testing purposes,EN 14511.
Want to learn more about our company? Please pay attention to our Haida group official website

Specifications

Model HD-E702-100 HD-E702-150 HD-E702-225 HD-E702-408 HD-E702-800 HD-E702-1000
Internal dimension 400*500*500mm 500*500*600mm 500*600*750mm 600*800*850mm 1000*800*1000mm 1000*1000*1000mm
External dimension 900*1070*1400mm 1000*1070*1500mm 1000*1170*1650mm 1100*1370*1750mm 1500*1180*1900mm 1500*1380*1900mm
Voltage(V) Sigle Phase 220V Sigle Phase 220V Sigle Phase 220V Three Phase 380V Three Phase 380V Three Phase 380V
Temperature range -20℃,-40℃,-70℃~150℃
Temp.& Humi.Adjust Way Balanced Temperature Humidity Control System(BTHC),Intelligent PID Regulation
Temperature fluctuations ≤±0.6℃ (without load and temperature stable)
Internal Chamber Material Stainless Steel 304
External Chamber Material Stainless steel or paint spray
Temperature uniformity ≤±0.6℃    (without load and temperature stable)
Temperature deviation ≤±1.0℃/ ±2.0℃  (without load and temperature stable)
Heating rate 3℃/min in average
Cooling rate 1℃/min in average
Humidity range  20%~98%RH
Humidity deviation 1 、≥75%RH:≤±3%RH ;2 、≤75%RH :≤±6%RH
Cooling Method Single-stage compression,Second-stage Compression;
Refrigerator Hermertically Sealed France Tecumseh Compressor or Semi-hermetic BOCK Compressor
Cooling Method Air-cooled

Structure

Temperature Humidity Test Chambers-miaos

Product Advantages

Haida series chambers meet international test performance standards. The units can be installed around the world for consistent testing at different facilities, supported by Haida Group and our cooperation prater in Australia, Dubai, India, Malaysia, Turkey and Vietnam. And our chambers feature two levels of overheat protection, and one levels of overcool protection. The system controller provides alarm messages with specific troubleshooting help to quickly resume testing.
The Haida series chambers have temperature change rates from 1 to 3°C per minute in average and controlled humidity from 10% to 95%. There are 6 sizes with interior volumes of 100 to 1000 Liters or we also provide tailor-made chambers of size. On the advance model for Cycling Chambers have temperature change rates from 3 to 15 °C, controlled humidity from 10 to 95%.

Completely lndependent system

Independent temperature and humdity system and automoticaly water-refilling system
Heating and cooling rate:low temperature down to-70℃/High temperature up to+150℃
System & Performance Options
Low and Ultra-Low Humidity Extends the humidity control range. (Normal Humidity Range Diagramed)
Water-cooling system.
Dry Air Purge keeps moisture in the chamber extremely low by purging with -40 °C. Compressed air supply required
Additional shelves, 50 Kg loading
Cable ports with flexible silicone plug, 50 , 100, 150mm or customer specific diameters
Product Structures2

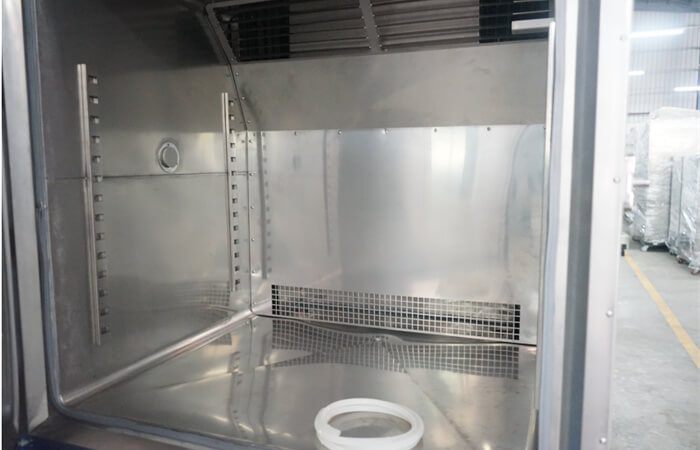

20221014171

Chamber Design Features

1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Direct water supply connection for continuous operation
6. Accurate wet/dry-bulb humidity measurement system for easy maintain

Cooling system

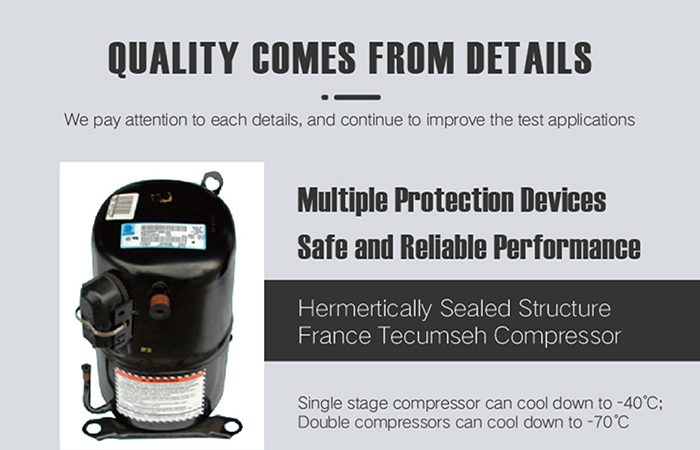

Adopt France Tecumseh compressor

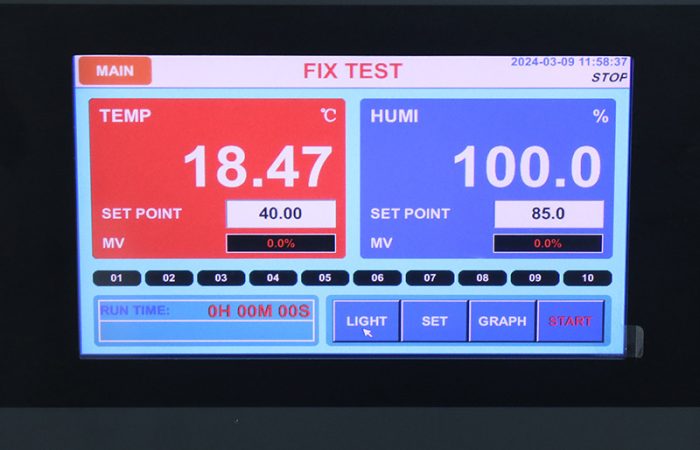

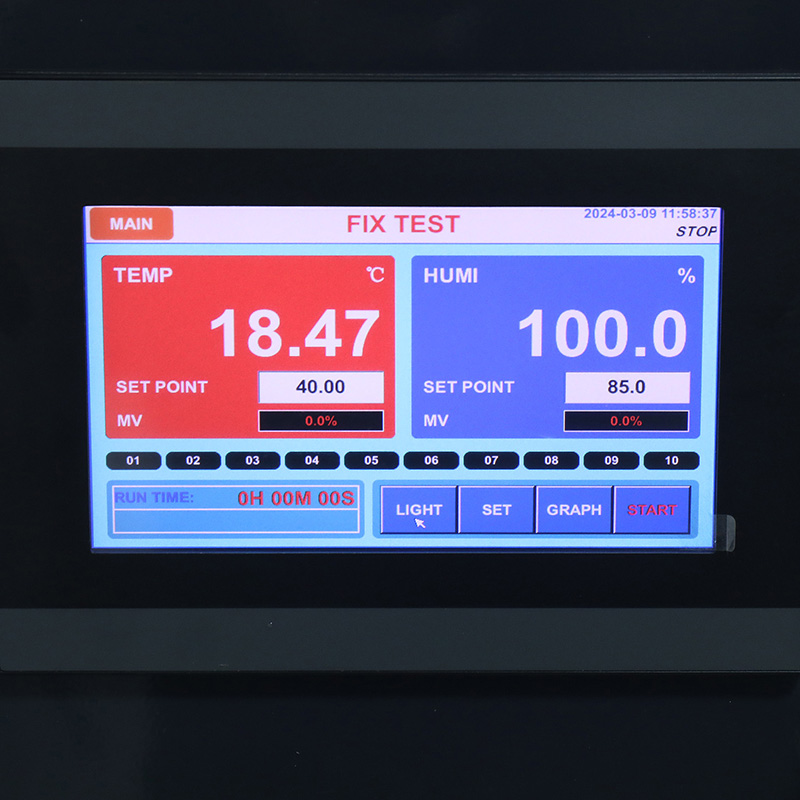

High precision controller support to set anddisplayaccuracy temperature and humidity data. Its reso-lution reaches .1℃
恒温恒湿试验箱-窄款
pro-img5

Control system

1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
Get a performance evaluation to help provide the suitable chambers to you.
For better assurance of performance for your temperature and humidity cycling application, Haida can provide a guaranteed performance calculation based on your submitted requirements.
Please use these questions as below as a guide to define your test plan. You can then give this information to our lab consultant or email to us, for review by our lab consultant. A recommended model with appropriate refrigeration size will provide to you.
