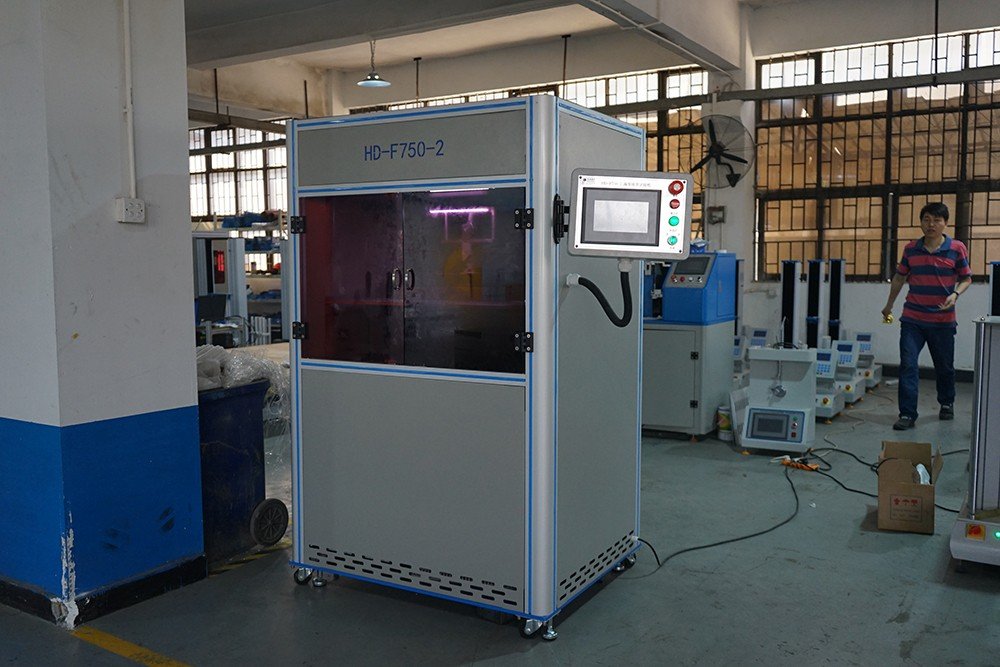

Foam Pounding Dynamic Fatigue Test Machine
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-F750-2 |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
- Categories
Product Detail
Generl Specifications:
Packaging Dimensions: (W*D*H) 700*920*1200MM
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 170kg
Applications& Test purpose:
Foam Pounding Dynamic Fatigue Test Machine is used to test material compressed indentation hardness, such as sponge, foam and other porous elastic. Put specimen under pressure plate, the plate compress the specimen with a specify speed until the national standard require concavity, the load cell feedback the pressure to computer, it processing and display, then measure the indentation hardness of sponge, foam and other materials.
DESIGN STANDARD
ASTM D 3574
STANDARD FEATURES:
|
Control and display |
Computer |
|
Sensor |
Load cell |
|
Capacity |
200KG |
|
Unit |
Kg, N, LB |
|
Up plate |
Diameter 200mm, bottom fillet R1mm |
|
Low plate |
420×420mm, holes diameter 6mm, space 20mm |
|
Max stroke |
500mm |
|
Test speed |
0～500mm/min |
|
Motor |
Servo motor |
|
Driver |
Taiwan high precision ball screw |
|
Power |
Single phase, 220V, 50Hz |
|
Weight |
160KG |
|
Dimension |
790×590×1010mm |
|
Accessories |
One computer with software |
Sponge indentation hardness and fatigue tester main parts:
PLC Huichuan
Touch screen KunLun on state
Electric Taiwan Auban and Japan Panasonic servo motor
Electrical accessories OMRON
The sensor made in China
Reducer Taiwan brand
