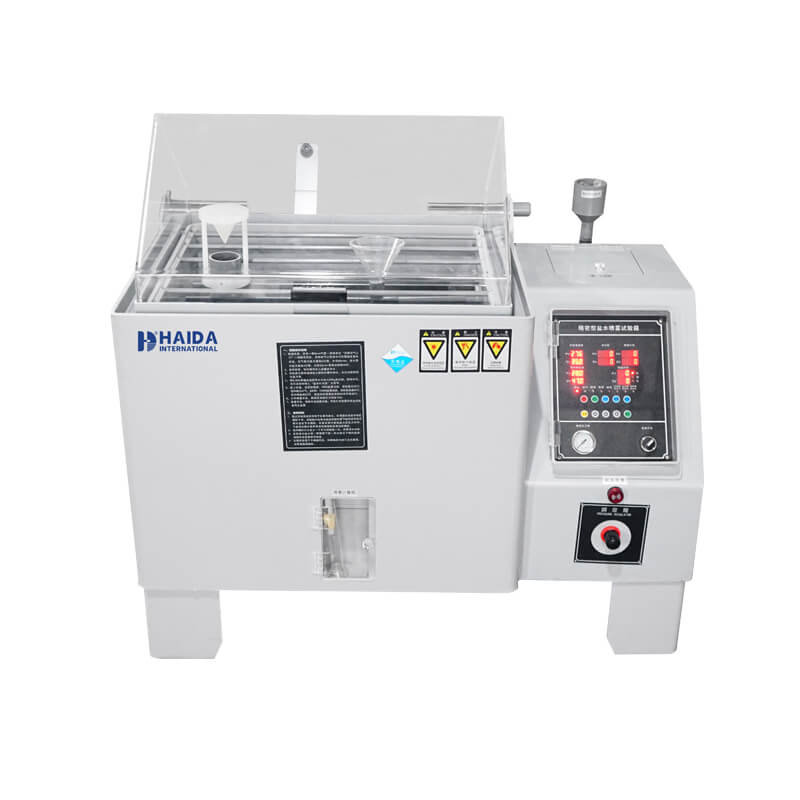

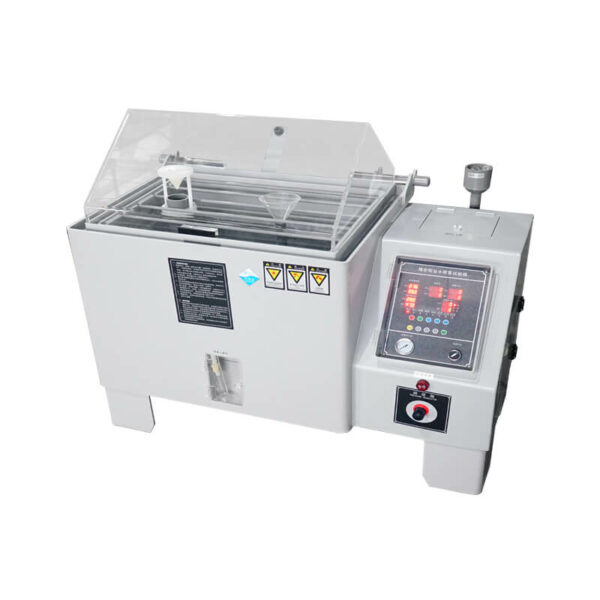

Salt Spray Test Machine HD-E808-60

Minimum

1 SET

Delivery

15 days after order.

Model

HD-E808

Certification

ISO

Country

China

BrandName

HD

Package

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Payment

L/C, D/P, T/T

Price

FOB, CIF

Salt Spray Test Machine Features

1.Durable 8 mm PVC construction, anti-corrosion and easy to clean.
2.Reservoirs with mixing system on stand.
3.Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4.Exposure zone lined with corrosion-resistant PVC sheets.
5.Clear cover allows viewing of test conditions.
6.Peaked cover prevents dripping of condensation onto samples.
7.Water seal and water level protection system.
8.Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9.Automatic DI water fills to humidifying tower.
10.Digital temperature control.
11.Integral over-protection on heaters.
12.Low water cut-off protection on humidifying tower.

Specifications

Model HD-E808-60 HD-E808-90 HD-E808-120 HD-E808-160 HD-E808-200
Inner Chamber Size   (W×D×H) 600*400*450mm 900*600*500mm 1200*1000*500mm 1600*1000*600mm 2000*1200*600mm
External Chamber Size  (W×D×H) 1070*600*1180mm 1410*850*1200mm 1900×1300×1400mm 2300×1300×1400mm 2700×1500×1500mm
Equipment Material Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C. rigid plastic board
Temperature Range 35℃~55℃
Temperature Fluctuations  ±0.5℃
Temperature Uniformity ≦2.0℃
Temperature Precision ±1℃
Test Chamber Temperature Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method(CASS) 50±1℃
Saturated air Barrel Temperature Salt Spray Method (NSS ACSS)47±1℃ Corrosion-resistant Testing Method(CASS) 63±1℃
Brine Temperature 35℃±1℃
Spray Quantity 1.0~2.0 ml / 80cm2 / hr (Collect at least 16 hours and take the average)
PH Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method (CASS)3.0~3.2
Lab Volume 108L 270L 600L 800L 1440L
Brine Tank Capacity 15L 25L 40L 40L 40L
Power 1∮AC220V,10A 1∮AC220V,15A AC 1∮,220V,30A
Multiple Safety Protection Devices Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories Testing Salt/ Measuring tank/ Nozzle Equipment  each 1 set

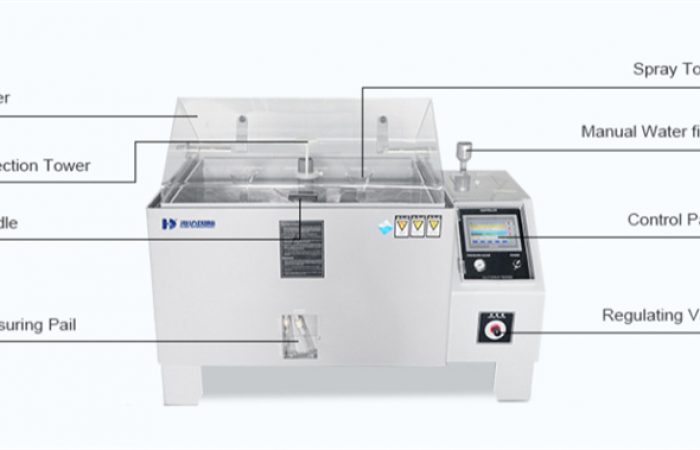

Structure

salt-spray-test-machine-HD-E808-60

Product description

Salt Spray Test Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.

Experiment method

GB / T2423.17-2008 salt spray test method.
GB / T 2423.18-2000 “basic procedures for electric and electronic products Test Ka”.
GB / T10125-1997 Corrosion tests in artificial atmospheres – salt spray test.
GB / T10587-2006 salt spray test chamber technical conditions.
GB10593.2-1990 electric and electronic products environmental parameters measurements.
GB / T1765-1979 Determination of resistance to humidity, salt spray, weather resistance (artificial acceleration) of the film prepared test.
Salt-02
20221215153310

Salt Spray Test Chamber Available test methods

Neutral salt spray test (NSS test)
Salt spray test (SS test)
Acetic acid salt spray test (ASS test)
Copper accelerated instinct test
High-temperature humid heat test

Acid and alkali resistance pure titanium heat pipe

Adopt water vapor heating method
Titanium heating tube PID control heating so as to achieve temperature balance
20221215153342
