Three Seats Sofa Durability Tester
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-F761 |
| Certification | ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
- Categories
Product Detail

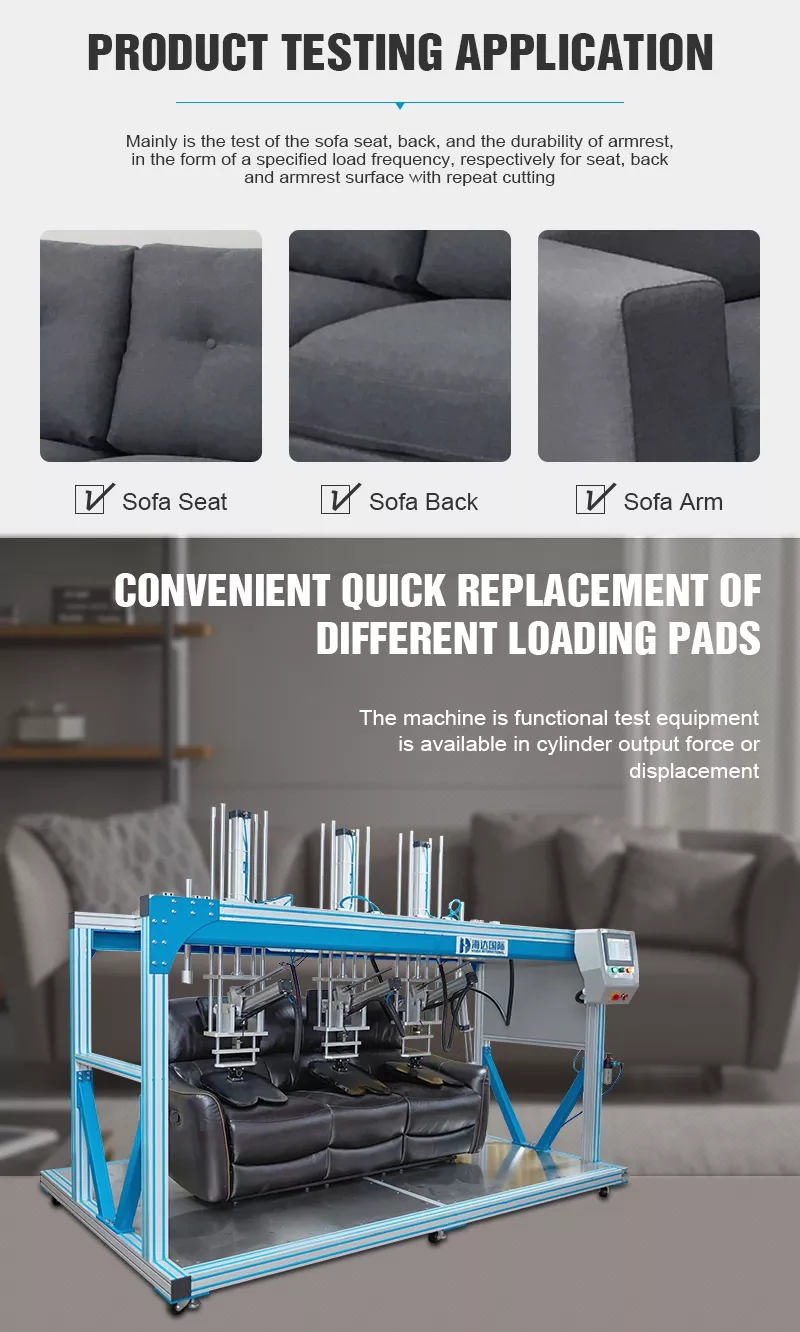

This Sofa Durability Furniture Testing Machine With simulates the normal conditions of usage to determine the sofa’s endurance under a long-term repeatability loading. The principle is to simulate normal functional use to determine the strength of the three-sofa structure by applying to seating and backrest with loads. Using a certain shape and load modules, with specific form, frequency, respectively, repeating load seating, backrest and armrest. Three tests can work together or independently, also the test position is adjustable.
Main technical parameters:
| Seat load | 750 N |
| Backrest load | 400N |
| Timer | 0~999,999 |
| Cyclic and holding time | 0~99.9S |

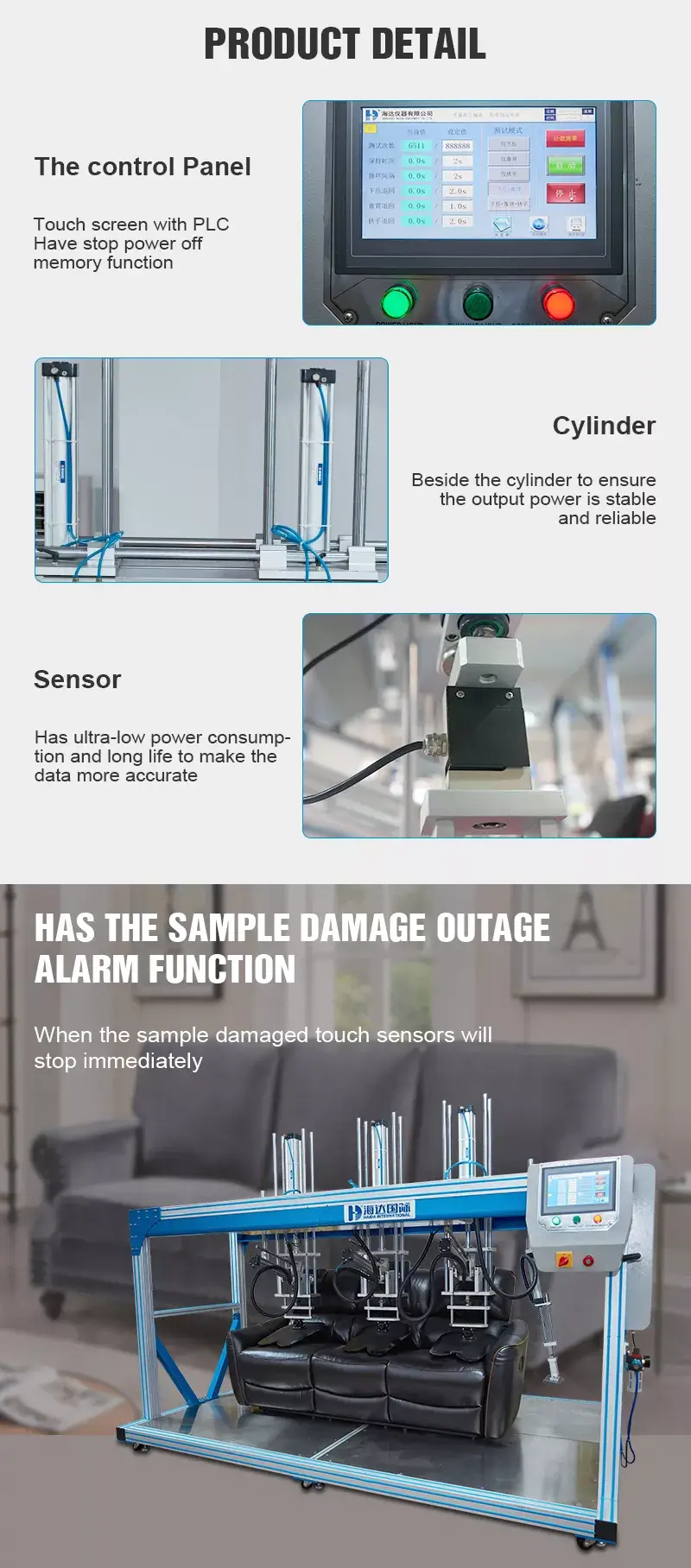

| Controller | LCD color Touch screen programmable controller |
| Power | AC220V,50Hz |
| Specimen size | (L*W*H) about 2200*1200*1200mm |
| Weight | about 400kg |
| Air source | 7kg/ cm2 |
| Three Seating and backrest test modules, one armrest test modules | |
DESIGN STANDARD: EN 4875
1a Seat static load test1b Back static load test
4a Seat fatigue test4b Back fatigue test
