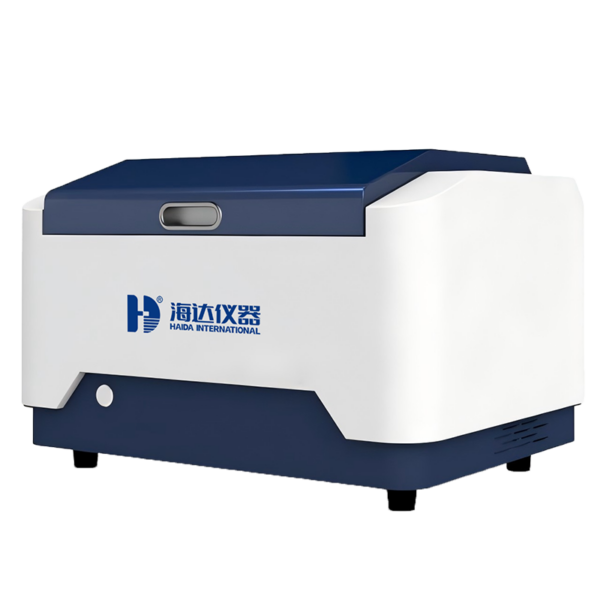

RoHS1.0 Analyzer element testing ranges from S-U, that is, Pb, Cd, Hg, Br in PBB and PBDE that can be controlled in the RoHS directive, Cr in hexavalent chromium, and Cl and Br in the halogen-free directive, which can fully meet RoHS/WEEE/halogen-free Relevant control requirements.
Product Specifications
| Model | HD-E812 |
| Test object | Powder, Solid, Liquid |
| Elemental analysis range | Sulfur(S)~uranium(U)
(NA, MG, AL, SI, P in silica gel can be measured above 600PPM) |
| The most measurable elements at one time | 36 kinds |
| Content analysis range | 1ppm~99.99% |
| Working stability | 0.1% of total fluorescence intensity |
| Test time | Fast measurement: 30s (depending on the substrate)
Routine measurement: 100s (depending on the substrate) |
| Minimum detection limit | Pb≤5ppm, Cd/Cr/Hg/Br≤2ppm, Cl≤50ppm |
| Instrument resolution | 144±5eV |
| Measuring chamber | 439*300*50mm; |
