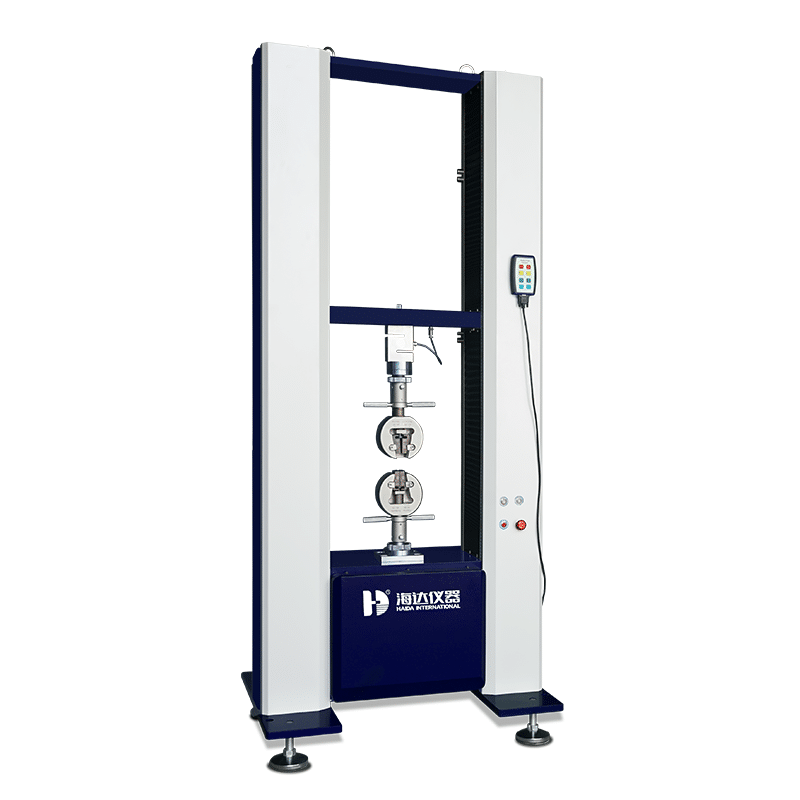

HD-B615-S Tensile Tester
| MINIMUM | 1 SET |
|---|---|
| DELIVERY | 15 days after order. |
| MODEL | HD-B615-S |
| COUNTRY | China |
| BRANDNAME | HD |
| PACKAGE | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| PAYMENT | L/C, D/P, T/T |
| PRICE | FOB, CIF |
Description
Computer Servo Double Column Tensile Tester has rich applications, more than 100 different sample fixtures are configured for users to choose, which can meet the test requirements of more
than 1000 materials; for different user materials, haida also provides customized services to meet the test requirements of different users.
than 1000 materials; for different user materials, haida also provides customized services to meet the test requirements of different users.
General test Project
Tensile stress, tensile strength, tearing strength, breaking elongation, fixed extension stress, constant stress elongation, constant stress value, tearing strength, arbitrary point force value, elongation at any point, pulling force, adhesion and peak value, pressure test, shear stripping force test, bending test, pulling force puncture test.
Special test items
1. The coefficient of elasticity is the definition of elastic young modulus, 2. Ratio limit, 3 elastic limit, 4 elastic deformation, 5 permanent deformation, 6 yield point, 7 yield strength, 8. Spring k Value.
Specifications
| Item | HD-B615-S |
| Frame capacity | 100kg-5T( can be optional ) |
| Load cell brand | Germany brand load cell for high accuracy 5000kg (1000,2000kg are optional) |
| Load accuracy | 0.5% F.S |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1000mm including fixture |
| Horizontal test space | ≤420mm |
| Test speed | 0.1~300mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Structure
FEATURES
Ten Processes Meet Variegated Requirements
The machine integrates ten professional and independent test procedures, such as tension, peeling, tearing, heat sealing, constant extension and tension, pressure, puncture retention force, etc., providing users with a variety of test items.
It supports the downward pressure test such as rubber plug puncture and ampule breaking force, and the test speed can be set freely.
Intelligent design such as limit protection, overload protection and automatic return to ensure operational safety.
Excellent testing mechanism accuracy upgrade
Equipped with force value testing system of global famous brands to provide force value accuracy better than level 0.5, better repeatability and more flexible testing.
Equipped with servo operation system of global famous brand and precision ball screw multiple axis positioning technology to provide displacement accuracy better than 0.5 level, stepless speed regulation, convenient use and more stable operation.
High End Embedded Computer System Platform Safety And Easy
Integrated system design, integration of instrument and software.
Support group test data comparison and analysis, with multiple unit conversion function.
The system is embedded with USB interface and network interface to facilitate the external access and data transmission of the system.
Clamp
Can replace various types of fixtures to test the tensile results of various materials.
Upper and Lower Platen
The upper and lower compression plates help the machine to perform efficient and accurate measurement, and also protect the equipment from wear and tear, which can ensure the accuracy of the.
Control Button
With stroke limit protection, overload protection, leakage protection and other functions to ensure the instrument’s high-precision and stable operation.
