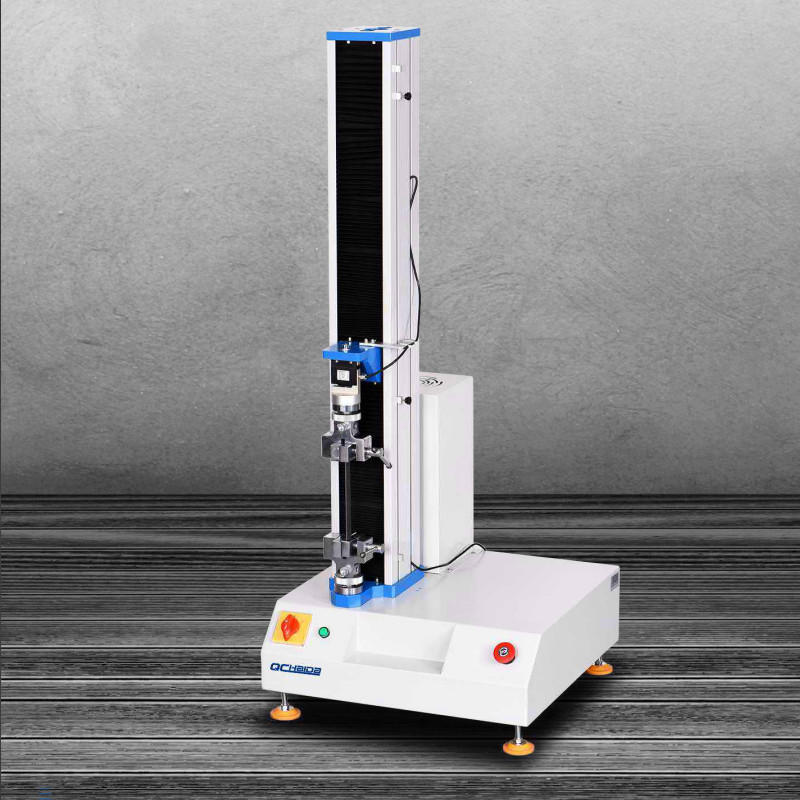

HD-B609C-S Tensile Testing Machine

Minimum

1 SET

Delivery

15 days after order.

Model

HD-B609C-S

Country

China

BrandName

HD

Package

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Payment

L/C, D/P, T/T

Price

FOB, CIF

Application

HD-B609C-S computer servo tensile testing machine is professionally suitable for releases stretching, peeling, deformation, tearing, bonding, piercing force, opening force, low-speed unwinding force, pull-out force and other performance tests of plastic films, protective film, composite materials, flexible packaging materials, plastic hoses, adhesives, adhesive tapes, stickers, medical patches, medical equipment, combination cover, metal foil, diaphragm, backing material, non-woven fabric, rubber, paper and so on products.

Specifications

Item Specification
Capacity 5kg Transcell load cell(USA)
Motor 400w Panasonic servo motor
Driver 400w Panasonic servo driver
Screw Ball screw
Control mode Computer & Software
Speed 0.1-500mm/min, adjustable
Stroke 900mm(excluding fixture)
Load resolution 1/250,000
Load accuracy ≤0.5%
Load accuracy ≤0.5%
Testing force range 1g-5kg
Unit gf/kgf/N//kN/LBf/T
Dimension (L*W*H)515*520*1250mm
Power 1∮ AC 220V

Structure

HD-AB609C-S

Features

Component improvement and upgrade, functional structure optimization.
The selection of high-quality components such as small-capacity sensors, Panasonic servo motors(multi-function type) and matching driver, as well as Muteng planetary reducer(silent type) to make the low-viscosity testing data more accurate and reduce errors.
Improve abnormal noise to meet the requirements of low viscosity test.
Cancel the touch screen and connect only to the computer to avoid the interference of test data.
Design the operational function and mark of manual ascent and descend to make the instrument more convenient to use.

Adopt silent reducer

More accurate test data and less errors.
With precision ball screw multi-axis positioning technology displacement accuracy is 0.5 class High efficiency and smooth transmission system.
20221021153729
HD-B609B-S (2)

Sensor

Installed protective device is not outside interference The test is more accurate
