HD-B604-S Material Testing Machine

Minimum

1 SET

Delivery

15 days after order.

Model

HD-B604-S

Country

China

BrandName

HD

Package

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Payment

L/C, D/P, T/T

Price

FOB, CIF

Universal Tensile Testing Machine Features

Variety of Testing: integrates multiple independent testing functions such as tensile, deformation, peeling, tearing, and compression…
Testing Data Analysis: constant tensile stress, elastic modulus, stress and strain…
High Precision And Smooth Operation: double-pillar ball nut and screw drive.
miniaturization and structural integration design.
Intelligent Safe System: multi-level limit protection, overload protection, automatic high-speed return, and fault notification to ensure the user’s operation safety.
Convenient Operations: embedded system and membrane key switch.
Data Transmission: the system is equipped with 4 usb ports and 2 network ports to facilitate data transmission and external access of the system.
Various Fixtures Can Be Chosen: equipped with more than 100 different sample fixtures for choose.
Universal Testing Materials: meet the test requirements of more than 1000 kinds of materials.
Customized Services: according to the different testing materials, haida tensile testing machine also provides customized services to meet the testing needs of different customers.

Specifications

Item Specification
Load capacity 5-2000kg   (50N,100N,200N,500N,1kN,2kN,5kN,10kN,20kN,can be optional)
Load cell brand Imported brand load cell
Motor Panasonic servo motor
Driver 400w Panasonic driver
Screw High precision ball screw
Control system Computer control, Windows 7 or 10 system
Test speed 0.1-500mm/min(Adjustable)
Stroke 1200mm (Including clamp)
Load resolution 1/250,000
Load accuracy ≤0.5%
Unit gf/kgf/N//kN/LBf/T
Dimension (L*W*H)880*505*1470mm
Weight Approx  183.9 KG
Power 1∮ AC 220V



Structure

HD-B604-S-img-01

Product Description

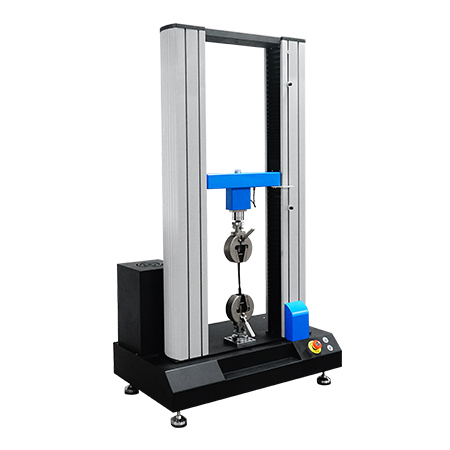

Double Column Tensile Testing Machine is used to test the mechanical properties of various materials such as static load, tensile, compression, bending,shearing, tearing, peeling and other mechanical properties of mechanical equipment. It is suitable for plastic plates, pipes, and other materials. Various physical and mechanical performance tests of profiles, plastic films and rubber, wires and cables, steel,fiberglass and other materials are developed for materials.

SOFTWARE

Statistical Analysis:group test curve overlay analysis, maximum, minimum, average, and standard deviation.
Multi-Curves Display And Real-Time Plot
Data Processing:file saving, setting loading, report printing and data comparing.
Various Testing: tensile test, compression test, bending test, peel test…
Various Test Actions: reciprocation, creep, hold tensile (compression), test pause, slip test, etc.
Software Protection: overload, over-displacement ,over-time protection.
Modularization of Specimen Setting
Modularization of Test Conditions
2022081114439708

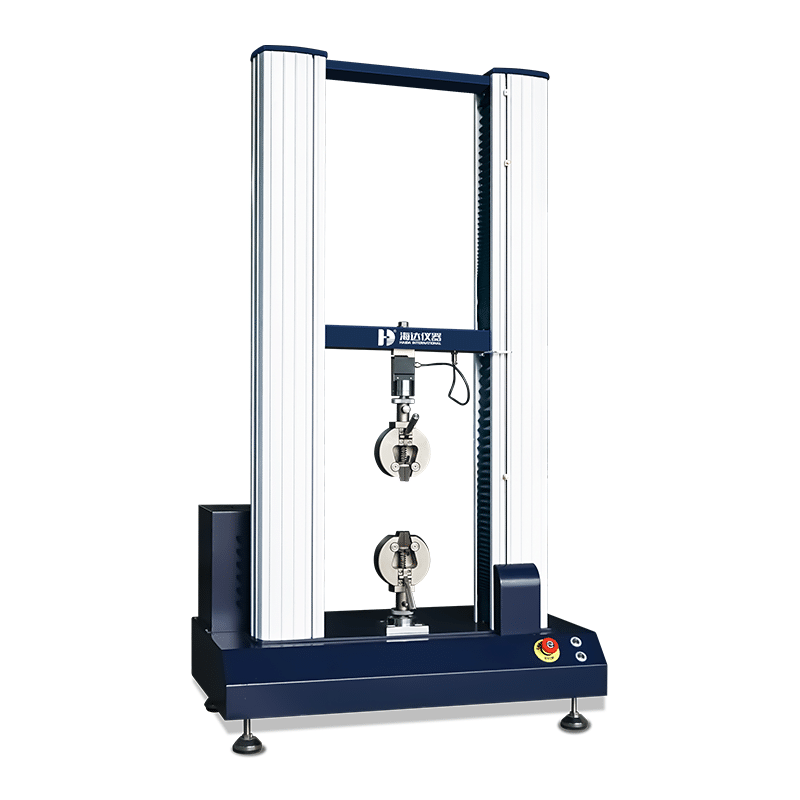

HD-B604-S (1)

Computer Connector

USB interface or network port is embedded in the system tofacilitate data transmission and extemal access.

Sensor

It is more accurate to install protective deviceswithout interference from the outside world.

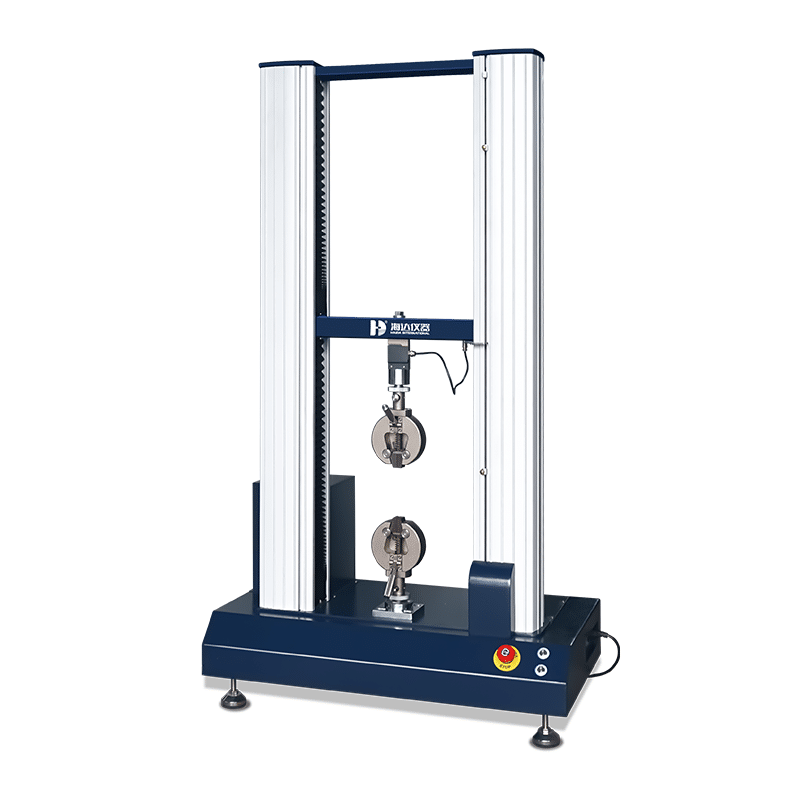

HD-B604-S (2)
