Product Center

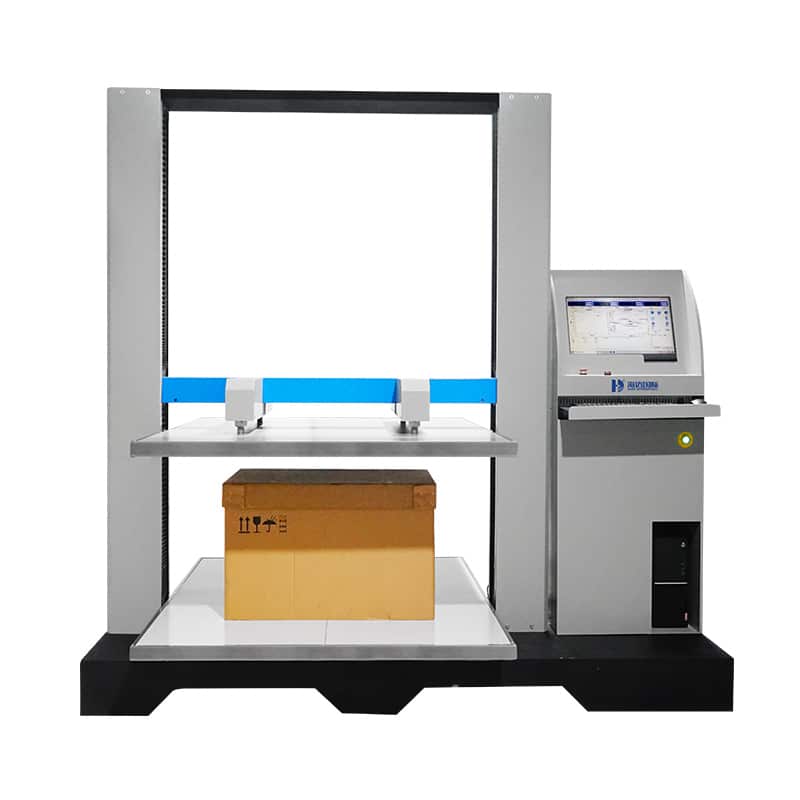

HD-A505S Box Compression Tester

Minimum

1 SET

Delivery

15 days after order.

Model

HD-A505S-1500

Country

China

BrandName

HD

Package

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Payment

L/C, D/P, T/T

Price

FOB, CIF

Box Compression Tester is specialized for testing the compression performance of cartons. It is suitable for compression test, deformation test and stacking test of the corrugated cartons, honeycomb boxes an etc packages. Also, it will be usage for the compression test of containers (such as plastic drums for edible oil, mineral water), paper canisters, paper boxes, paper cans, container drums and etc.



Design Standard:

ASTM D6055-2019,ISTA 6 Amazon, ISTA 6- SAMS CLUB, ISTA 3J GENERL SPECIFICATIONS



Feature:

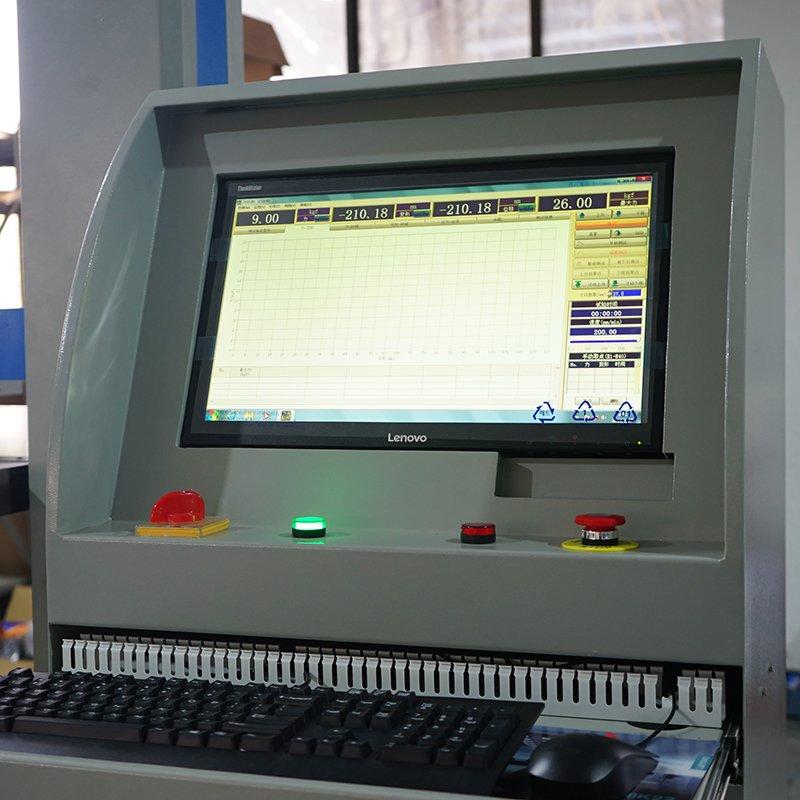

1. Clear software interface with obvious icons, can real-time display of each test data and can monitor the test process at any time

2. Multi-purpose – customer can choose compression test or stacking test as per their requirements

3. Double Ball guide rod design. ultra-high transmission accuracy, smooth operation and high power transmission efficiency. Low failure, long life and low noise

4.Equipped with many intelligent configuration, such as limit stroke protection, overload protection, and fault prompts to ensure the safety of users’ operations

5. Chinese-English bilingual test system to meet more needs;



Specifications:

Model HD-A505S-1200 HD-A505S-1500
Capacity 20kN 50kN
Test Space (L*W*H) 1000*1200*1500 mm 1300*1500*1500 mm
Resolution 1/250,000 1/250,000
Power AC 220V, 50 Hz, 1.5kW AC 220V, 50 Hz, 1.5kW
Item Description
Max. Force 5000kg(50KN)
Load cell 4 load cell for highest accuracy
Control system Windows 10, RS-232 interface
Motor Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Load cell Resolution 1/250,000
Load Precision within ±0.5%
Effective test area 1300*1500*1500mm
Test speed 0.01~200mm/min
Software Mtest HD-002-A(Independent R&D)
Data display Load, displacement, speed, loading rate and elapsed time
Safety features E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat
