Product Description

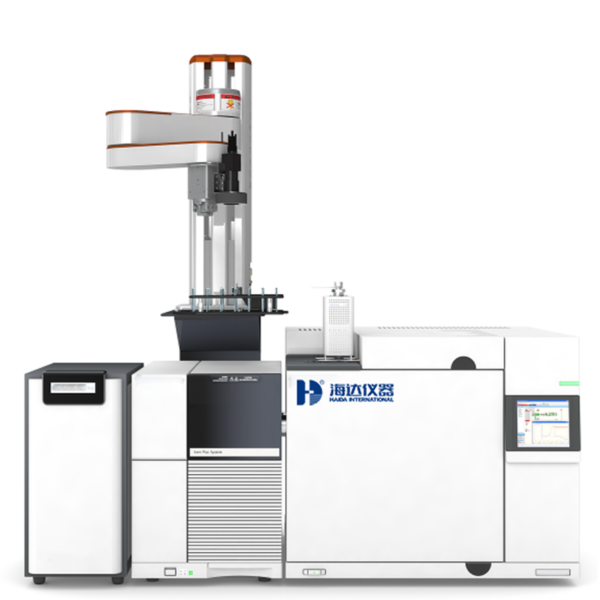

Gas Chromatography Mass Spectrometry machine adopts ceramic/platinum wire dual model heating. It mainly utilizes the differences in boiling point, polarity and adsorption coefficient of each component in the sample in the chromatographic column to separate the components in the chromatographic column, and conducts qualitative and quantitative analysis on the separated components.
Product Specifications
| Model | HD-E838 |
| GC Part | |
| Retention time repeatability | < 0.008% or < 0.0008 minutes |
| Peak area reproducibility | < 0.5% RSD |
| Heating (maximum heating rate) | 120˚C/min |
| Cooling rate | < 3.5min (450˚C to 50˚C) |
| Temperature operating range | RT + 4˚C ~ 450˚C |
| MS Part | |
| Ion source | EI, EI/CI mixed source, CI (PCI & NCI) |
| EI ion source | HES, SS, Inert, Extractor, HydroInert ion source are mainstream configurations |
| PCI signal-to-noise ratio | 1200:1 100pg BZP |
| NCI signal-to-noise ratio | 2000:1 200fg OFN |
| Pyrolysis Thermal Desorber | |
| Heating mode | Ceramic heating module
(attenuation does not exceed 10% in 60,000 hours) |
| Temperature control accuracy | ±0.1℃ |
