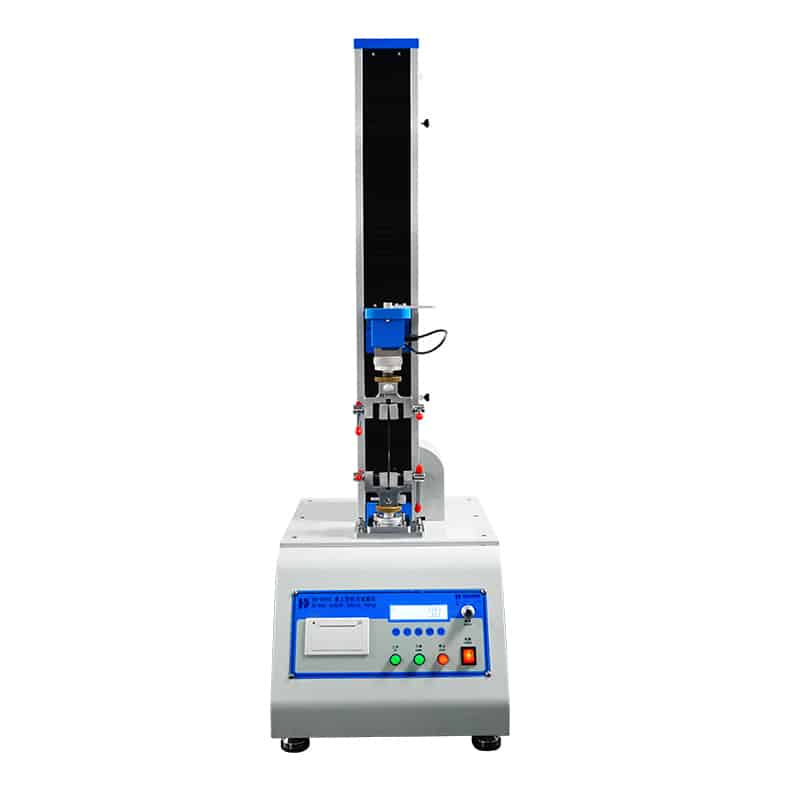

HD-B602 Desktop Tensile Testing Machine

Minimum

1 SET

Delivery

15 days after order.

Model

HD-B602

Country

China

BrandName

HD

Package

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Payment

L/C, D/P, T/T

Price

FOB, CIF

Application

This type Tensile Test Machine  is in the Quality Management series of universal testing equipment in the simplest operation. Accurate data, using single column industrial design for easy to placement and movement. This universal test equipment uses the LED control system and can print the test data graph in time.
Design standard (including but not limited to ):ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM…
Adhesives Tape/Pressure Sensitive Tape
EN 1719: Loop Tack Test
ASTM D3654: Shear Adhesion Test
ASTM D3759: Tensile &Elongation Test
FTM: 180&90 Degree Peel Test, Loop Tack
EN 1939, ASTM D3330: 180&90 Degree Peel Test
ISO 11339, ASTM D1876, ASTM F2256: T-type Peel Test

Specifications

Item Specification
Frame capacity 200kg
Load cell brand China brand, 200kg (5,10,50,100kg are optional)
Load accuracy 1% F.S
Printing Built-in Printer
Control system Controller with LED
Motor Adjustable-speed motor, ball screw rod
Force reading KG/N/LB
Vertical test space 900mm including fixture
Test speed 50~300mm/min (adjustable by rotary knob)
Software TM 2101
Data display Max. break force
Safety features Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat

Structure

HD-B602 (4)

Features

Motor system:AC motor +Driver +High precise ball screw 900mm including fixture stoke
It is with build-in printer, can print the testing date, time, maximum, average and minimum value.

Lab Room

In order to provide our customers with the best service, our company set up its own lab room. On the one hand can be easy to do sample testing (recording test process to the customer). Another aspect of equipment teaching training. For example, equipment commissioning, calibration, test software use, live video maintenance, replacement grips and soon.
1557536121785
