Product Center

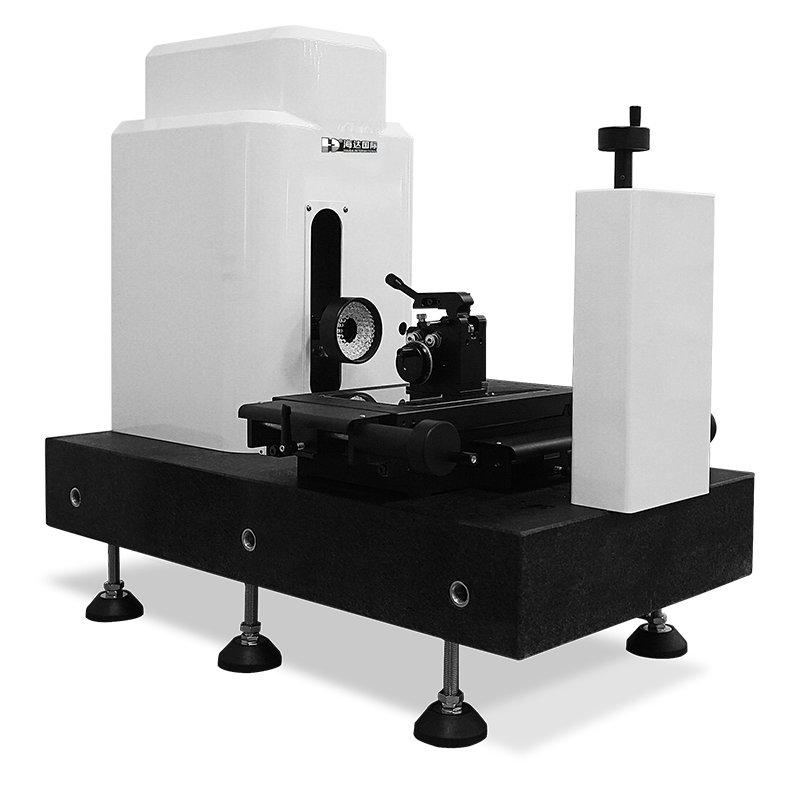

CNC Optical Image Measuring Equipment

Minimum

1 SET

Delivery

15 days after order.

Model

HD-VMCP-3020P

Country

China

BrandName

HD

Package

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Payment

L/C, D/P, T/T

Price

FOB, CIF

Category

VMC-P Characteristics:

Creative modern-shape-design;
Fashionable auto-painting-craftwork;
Steady granite base;
Stable imported V-shape guide;
Precise metal and glass worktable;
High-speed 3-axis CNC driven motor;
Adjustable USB 40-division ring LED illumination;
Advanced Pomeas 0.7~4.5X Zoom lens;
Wonderful SONY 1/2“ Color CCD camera;
Powerful 3D measuring software QuickMeasuring 4.1 version.

VMC-P Specifications:

CNC Optical Image Measuring Equipment

Mode Vexus VMC3020P Vexus VMC3030P Vexus VMC4030P Vexus VMC5030P
Order# 526-301 526-331 526-401 526-501
Metal table size 450x350mm 450x450mm 550x450mm 650x450mm
Glass table size 350x250mm 350x350mm 450x350mm 550x350mm
Travel: X,Y 300x200mm 300x300mm 400x300mm 500x300mm
Z-axis Travel 200mm 200mm 200mm 200mm
Resolution 0.0005mm 0.0005mm 0.0005mm 0.0005mm
Renishaw touch probe MCP-K2(581-721) MCP-K2(581-721) MCP-K2(581-721) MCP-K2(581-721)
X,Y-axis accuracy ≤(3+L/200)um ≤(3+L/200)um ≤(3+L/200)um ≤(3+L/200)um
Measuring software QM4.2 QM4.2 QM4.2 QM4.2
Nte weight 300kg 320kg 460kg 540kg
Dimension(mm) 700x600x900 760x600x900 950x590x1000 950x700x1100

MC-P Standard Delivery:

CNC Optical Image Measuring Equipment

Standard Delivery Order# Standard Delivery Order# Standard Delivery Order#
Measuring Software QM4.2 CCD Camera MC3 484-123 Pomeas detent zoom lens 421-101
Calibration Block 581-801 Capture Card 7130 527-130 LED Lightsource 425-400
Scale Transfer U3 564-301 Renishaw Probe MCP-K2 581-721 Dell PC System

VVMC-P Optional Accessories:

Optional Accessories Order# Optional Accessories Order# Optional Accessories Order#
Renishaw Probe MCP-K1 581-711 Pomeas motor zoom lens 421-001 Operation Joystick 581-542
Renishaw Probe MCP-K3 581-731 Pomeas Coaxial zoom lens 421*001 Working Cupboard ST03 581-631
