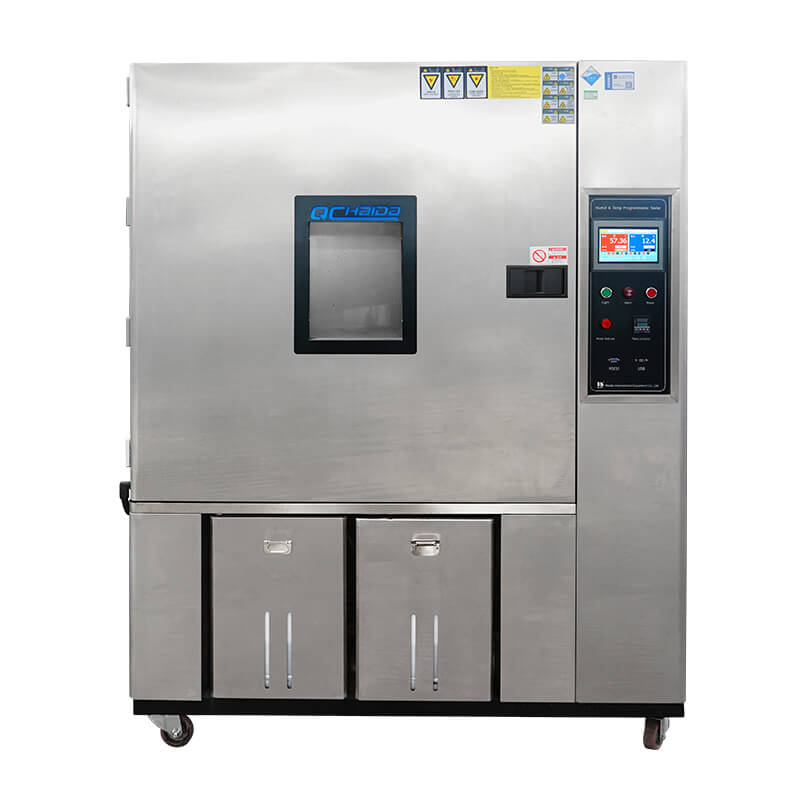

Climatic Test Chamber 1000L
| Model | HD-E702-1000L |
|---|---|
| Certification | CE,,ISO |
| Country | China |
| BrandName | HD |
| Temperature range | -40~+150℃ |
| Application | Automatic Climatic Test Chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-e |
Description
Automatic Climatic Test Chamber is used to test the performance of materials in various environments and to test various materials for heat resistance, cold resistance, dry resistance and moisture resistance. Suitable for the quality of electronic, electrical, mobile, communications,plastic products, metals, food, chemicals, building materials, medical, aerospace and other products.
Specifications
| Model | HD-E702 |
| Internal dimension (W*D*H) | 1000*1000*1000mm |
| External dimension (W*D*H) | 1500*1380*1900mm |
| Temperature range | -40~+150℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | 2℃ |
| Humidity range | 20~98%RH (Refer Image below) |
| Humidity fluctuation | ±2.5%RH |
| Humidity uniformity | 3%RH |
| Cooling speed | 1℃/min in average (without loading) |
| Heating speed | 3℃/min in average (without loading) |
| Internal chamber material | SUS#304 stainless steel, mirror finished |
| External chamber material | Stainless steel |
| Cooling method | Air cooling |
| Controller | LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
| Insulation material | 50mm high density rigid Polyurethane foam |
| Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
| Compressor | France Tecumseh compressor |
| Lighting | Heat resistance |
| Temperature sensor | PT-100 dry and wet bulb sensor |
| Observation window | Tempered glass |
| Testing hole | Diameter 50mm, for cable routing |
| Sample tray | SUS#304 stainless steel, 2pcs |
| Safety protection device | Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
Structure
Applications
To simulate test environment with different temperature and humidity
Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
Uncover test unit weakness in a short-term test with accelerated time effect
