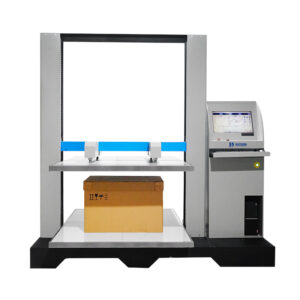

Box Compression Strength Tester
| Minimum | 1 SET |
|---|---|
| Delivery | 15 days after order. |
| Model | HD-A502S |
| Certification | ISO |
| Country | China |
| BrandName | HD |
| Package | Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. |
| Payment | L/C, D/P, T/T |
| Price | FOB, CIF |
- Categories
Product Detail
Product Description
HAIDA’s Box Compression Tester is a reliable and accurate machine which specialized for testing the compression performance of cartons.
It is suitable for compression test, deformation test and stacking test of the Corrugated cartons, honeycomb boxes an etc packages.
Also,it will be usage for the compression test of containers (such as plastic drums for edible oil, mineral water), paper canisters, paper boxes, paper cans, container drums and etc.
Product Specifications
| Item | HD-A502S-900 | HD-A502S-1200 | HD-A502S-1500 |
| Max. Force | 10KN(1000 kg ,2205lb) | 20KN(2000 kg, 4409lb) | 50KN(5000kg,11023lb) |
| Load cell | 1 load cell for highest accuracy | ||
| Control system | Dual control (Computer control with Windows mode+Touch screen control ) | ||
| Servo Motor | 400W | 750W | |
| Servo Driver | 400W | 750W | |
| Screws | Ball screws(Double ball guide rod design, high transmission accuracy, high transmission power efficiency) | ||
| Force reading | Gf, kgf, Ibf, N, KN, T etc | ||
| Load cell Resolution | 1/250,000 | ||
| Load Precision | within ±0.5% | ||
| Effective test area (L x W x H) | 700x900x900mm | 1000x1200x1000mm | 1300x1500x1500mm |
| Compression Stroke | 0~900mm | 0~1000mm | 0~1500mm |
| Lift speed | 0.1~200mm/min | ||
| Software | Mtest HD-002-A(Independent R&D) | ||
| Data display | Load, displacement, speed, loading rate and elapsed time | ||
| Safety features | E-Stop
Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
||
| Report items | Serial number, peak value, average value, set pressure holding value, pressure holding time | ||
| Electrical Supply | 1phase, AC 220V, 500W, 50HZ | 1phase, AC 220V,550W,50HZ | 1phase, AC 220V,900W,50HZ |
| Overall Dimensions (L x W x H) | Approx.1510x1200x1645mm | Approx.1510x1200x1645mm | Approx.1865mmx1500mmx2235mm |
| Weight | Approx.350kg(772lb) | Approx.670kg(1477lb) | Approx. 1000kg(2205lb) |
| Operation Temperature and relative humidity | 10℃~40℃, 30~80% | ||
Product Characteristics
1. Dual display and control (Touch Screen and Computer) -Stroke limit protection, overload protection and fault prompt ensure the safety of users.
2. Adopt Solid A3 steel compression plates,with high parallelism and stability.
3. HAIDA Self-developed testing software meet various test requirements.
4. Compression stroke shorted to 0 mm from 15mm to be suitable more smaller sample, can test cartons of different sizes and extreme sizes in one machine.
