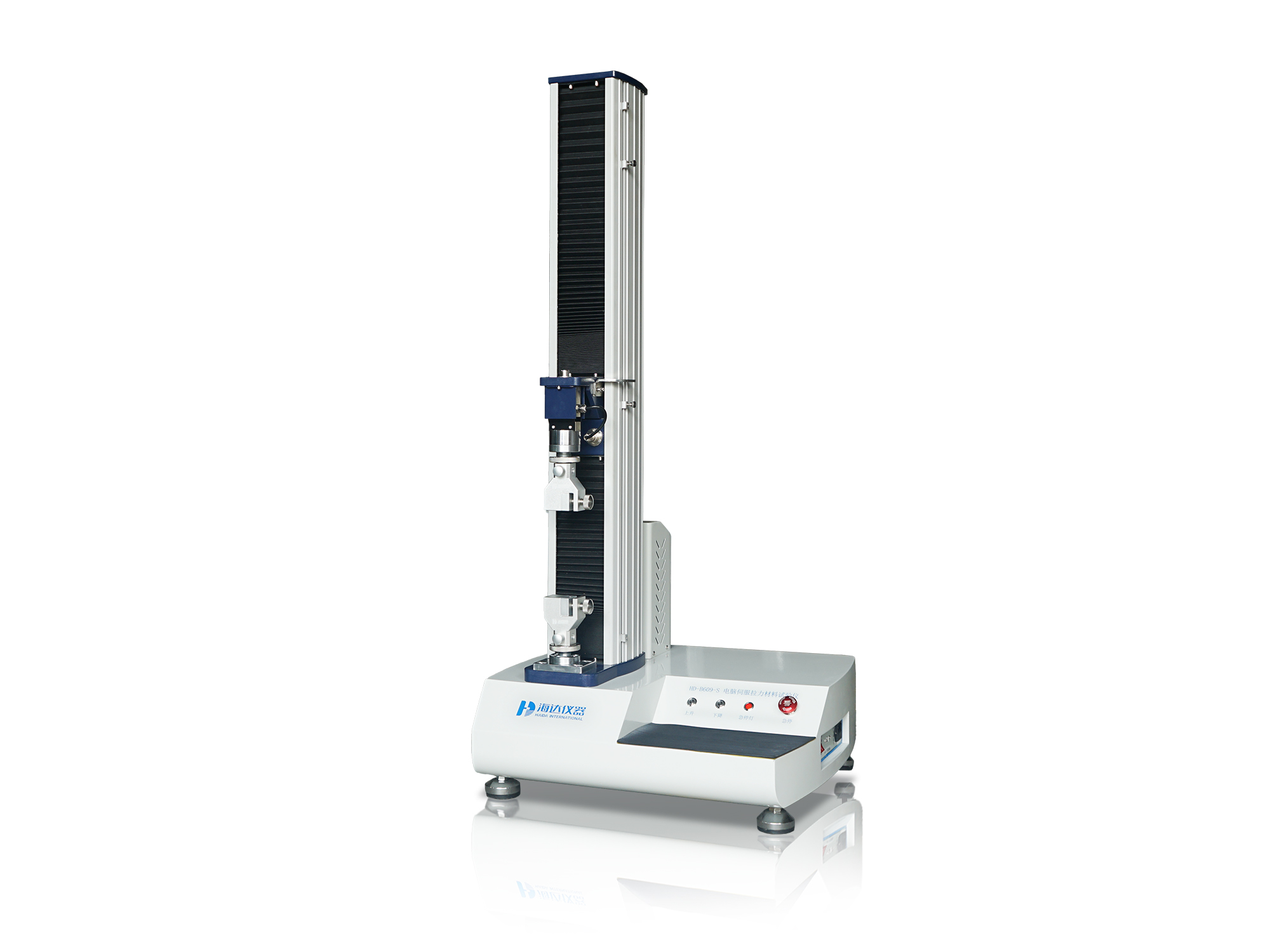

50N~2KN Material Testing Machine

Material Testing Machine 50N~2KN is professionally specialized in plastic film, composite, soft packaging materials, plastic hose, adhesive, adhesive tape, medical adhesive, medical device, release paper, protective film, composite cover, metal foil, diaphragm, backboard material, non-woven fabric, rubber, paper and other products of tensile, peeling, deformation, tear, bonding, puncture force, opening force, low speed unwinding force, pull force and other performance tests.

Standards: TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3, GB/T4857.4

Advantages of Haida Testing Machine

Equipment integrates ten professional independent test procedures, such as tensile, peeling, tearing, heat sealing, fixed extension tensile, lower pressure, puncture retention force, etc., and provides users with a variety of test items.

  • Support rubber plug puncture, ampoule breaking force and other compression test, test speed can be set freely.
  • Intelligent design of limit protection, overload protection, automatic return, etc. to ensure safe operation.
  • Equipped with a force-value testing system for world-renowned brands, providing better force-value accuracy than level 0.5, better repeatability and more flexible testing.
  • .Equipped with a world-renowned brand servo operating system, with precision ball screw multi-axis positioning technology, to provide better than 0.5 level displacement accuracy, poleless speed regulation, easy to use, more stable operation.

Specifications

Basic Data
Model HD-B609-S
External dimension (L*W*H)515*520*1250mm
Weight About 68KG
Force reading gf/kgf/N//kN/LBf/T
Power 1∮ AC 220V
Model HD-B609-S
Load capacity 50N~2KN
Load cell brand Germany brand TECSIS load cell
Motor servo motor
Actuator 400w servo actuator
Screw Ball screw
Control system PC with windows 7 system
Test speed 0.1-500mm/min (adjustable)
Vertical test space 900mm (including clamp)
Load resolution 1/250,000
Load accuracy ≤0.5%
